Small Diaphragm Microphone
❤ Add to collection

Small Diaphragm Microphone

The classic cardioid pattern can effectively reduce sound source feedback, improve sound source fidelity, and perfectly present the delicate beauty of recording, chorus, orchestral and other timbres.


$0.00
$0.00
$105.00
$105.00
Weight:0.000KG
Collor：
Quantity：
Buy now
Add to cart
Product

The classic cardioid pattern can effectively reduce sound source feedback, improve sound source fidelity, and perfectly present the delicate beauty of recording, chorus, orchestral and other timbres.

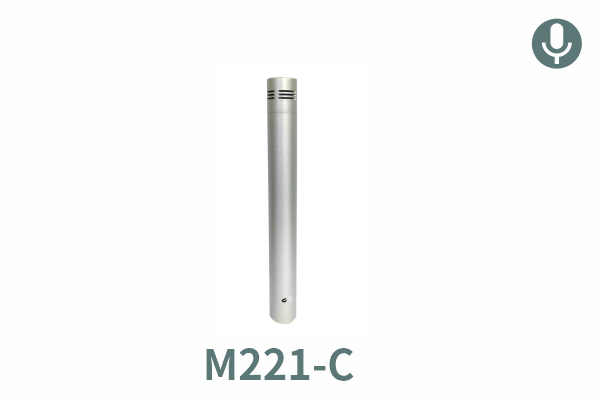

  M221-C

  Small Diaphragm Microphone




*GAODIMIC® The brand model product is consistent with this product.


Characteristics


- Small and exquisite appearance, simple installation.

- Provides 9-48v phantom power input.

- Suitable for testing sound fields and PA system calibration.


Functions


The classic cardioid electret recording pickup has a wide frequency response and a unique acoustic structure design that can effectively avoid external sound interference. It is suitable for indoor recording and live stage performances. It can provide a larger dynamic range and has the characteristics of good transient response, small distortion and low noise. The classic cardioid pattern can effectively reduce sound source feedback, improve sound source fidelity, and perfectly present the delicate beauty of recording, chorus, orchestral and other timbres.


Parameters


Conversion method

Back type capacitor


Frequency response

20-20KHz


Directivity

Heart


Signal-to-noise ratio

≥75dB


Sensitivity

-42±2dB at 1KHz


Operating Voltage

12-48V phantom power


Equivalent noise level

≤20dB (A-weighted)


Interface Type

Three-pin XLR male connector


Maximum sound pressure level

130dB ≤1% T.H.D at 1KHz


Size and weight

L 160×OD 19 mm / 130g


Characteristic Curve

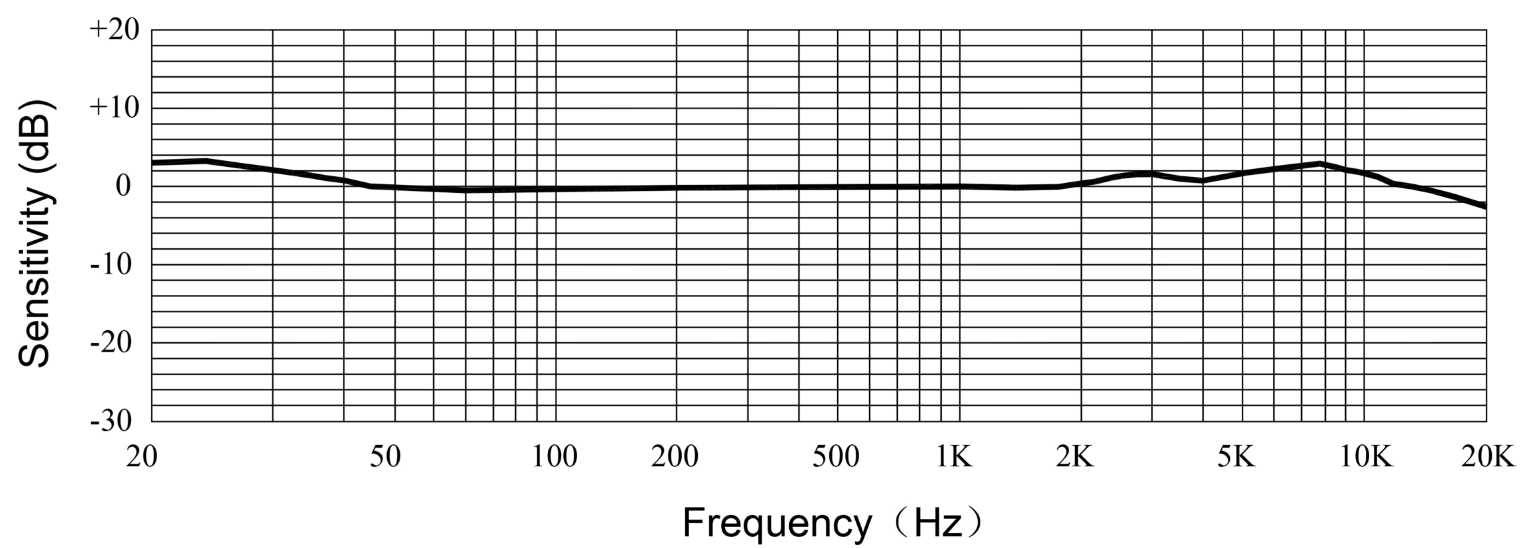

1-Freq. Response Range

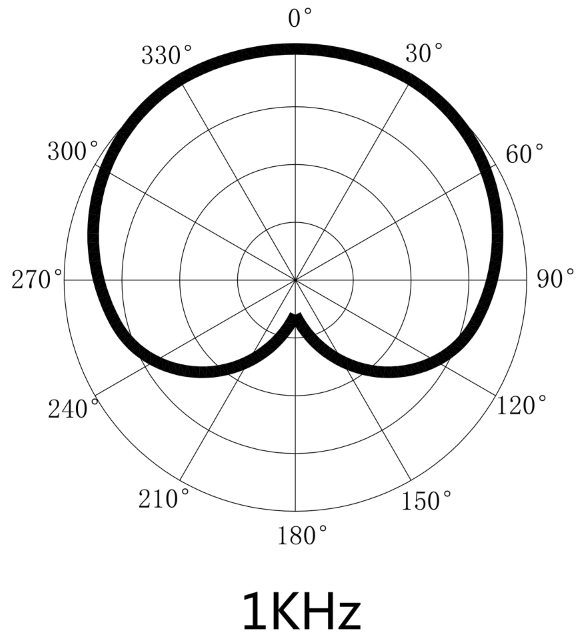

2-Directivity


文档支持


Only Chinese Version be supported

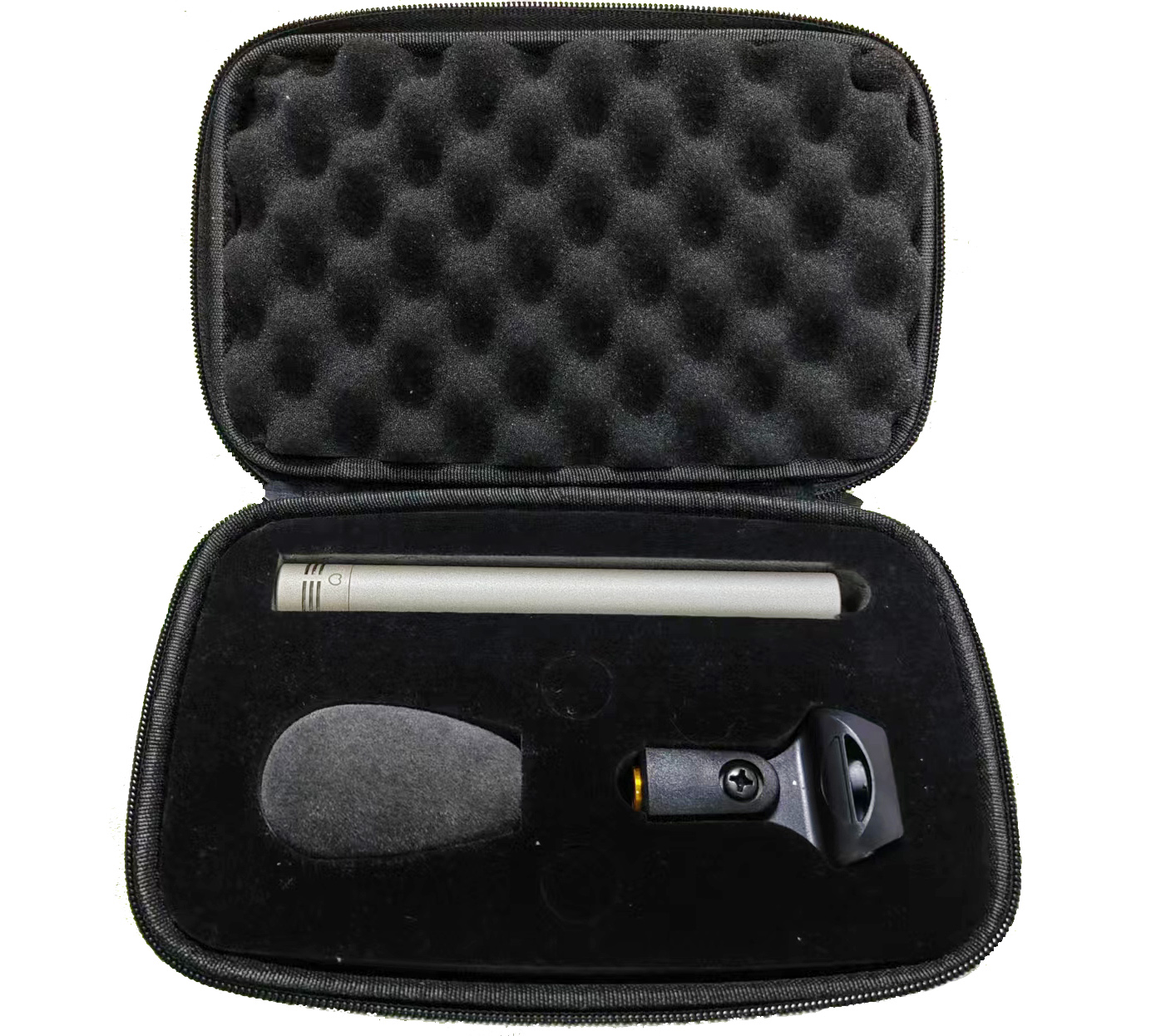

Standard Accessories：

=========================

Microphone stand *1

Storage package *1

Manual *1

Qualification certificate *1
