Digital UHF Wireless Microphone
❤ Add to collection

Digital UHF Wireless Microphone

Based on the DT220 TECH platform, the new software system is suitable for conference speeches and small performances.





$0.00
$0.00
$58.00
$58.00
Weight:0.000KG
Collor：
Quantity：
Buy now
Add to cart
Product

Based on the DT220 TECH platform, the new software system is suitable for conference speeches and small performances.





Digital Audio UHF Wireless System

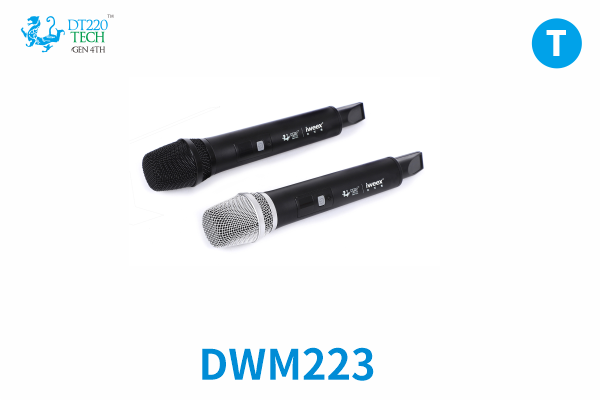

  DWM223

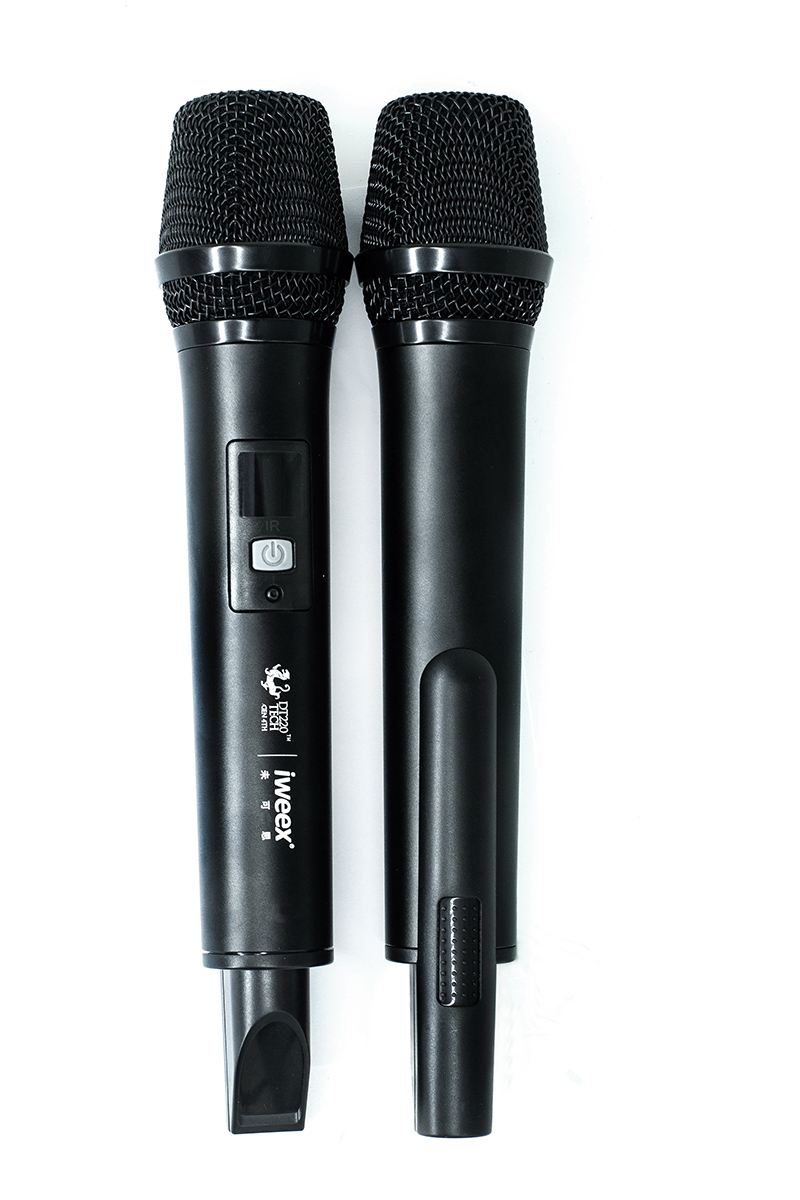

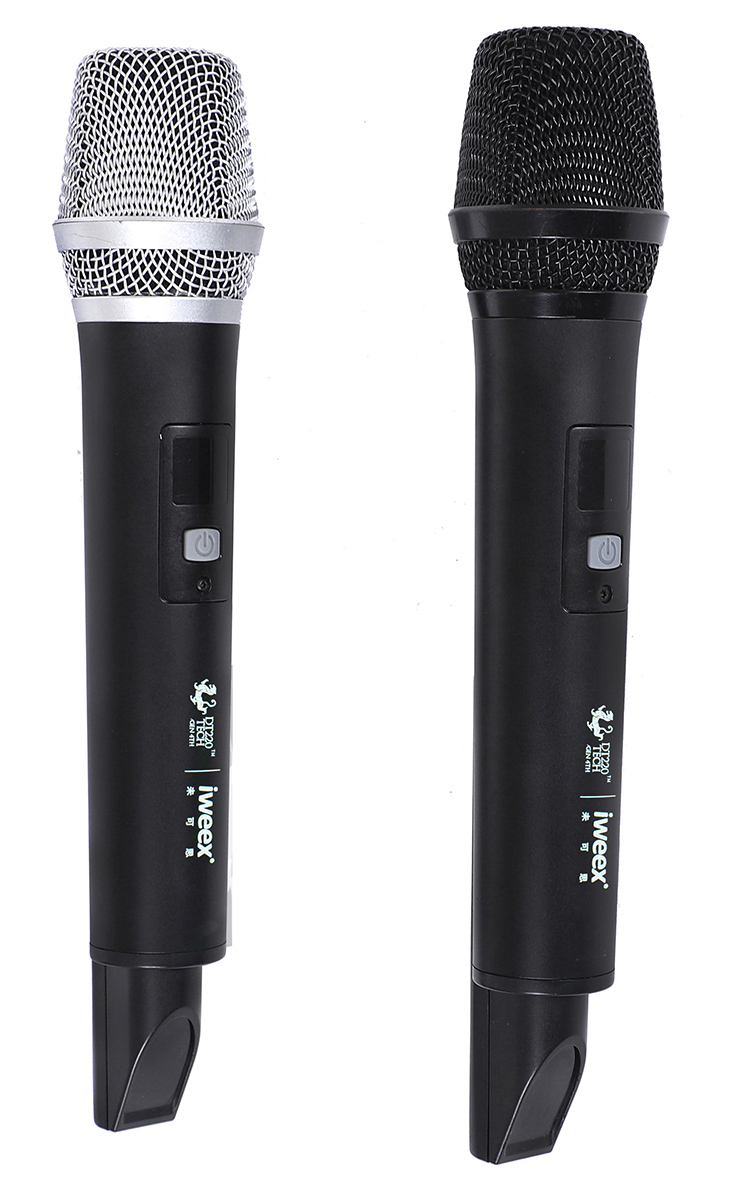

 Digital Wireless Microphone





       4th Generation Digital  Audio UHF Wireless Tech


Application Scenarios


1. Pick up and forward sounds from various sound sources on stage (instruments, harmony, chorus);

2. High-end meeting scene.


Characteristics


▪ Based on "DT220 TECH" digital U-segment wireless audio technology, it features stage studio-level sound quality, anti-interference, anti-crosstalk, high fidelity, high signal-to-noise ratio, low noise floor, and excellent wireless transmission distance.

▪ Digital U-segment technology, the effective wireless transmission distance is up to 70 meters, effectively avoiding intermodulation interference.

▪ Ultra-low power consumption, battery life >7 hours (lithium battery), standby time >20 hours.

▪ Using "hybrid power" patented technology, it can be powered by 3.7V 14500 lithium battery or 1.5V AAA AA battery.

▪ Used with a receiver with built-in lithium battery, it can be easily used outdoors.


Parameters


 Communication parameters

Transmission band

510~590MHz, 668~698MHz (varies according to different regions)


Modulation

Pi/4 DQPSK


Transmission distance

>120m MAX (related to transmitter model, RF signal absorption, reflection, interference and performance options)


Occupied bandwidth

<200KHz (parameter configuration varies according to different regions)


Frequency response

20Hz-20KHz


Transmission delay

＜4ms


Signal-to-noise ratio103dB (different depending on the transmitter)

Distortion T.H.D<0.03% （@1KHz）(different according to different transmitters)

Phase representation

+30°  ~ -60°


Launch connector

Direct plug-in XLR male socket


Function

Battery, built-in antenna


Microphone index


TypeDynamic microphone

Sensitivity0^0 - 71dB±3dB ( 0dB=1V/ubar @ 1KHz)

Frequency response range50Hz～16kHz

Output impedance600Ω ± 30% （@1KHz)

DirectivitySingle direction

Physical and electrical indicators

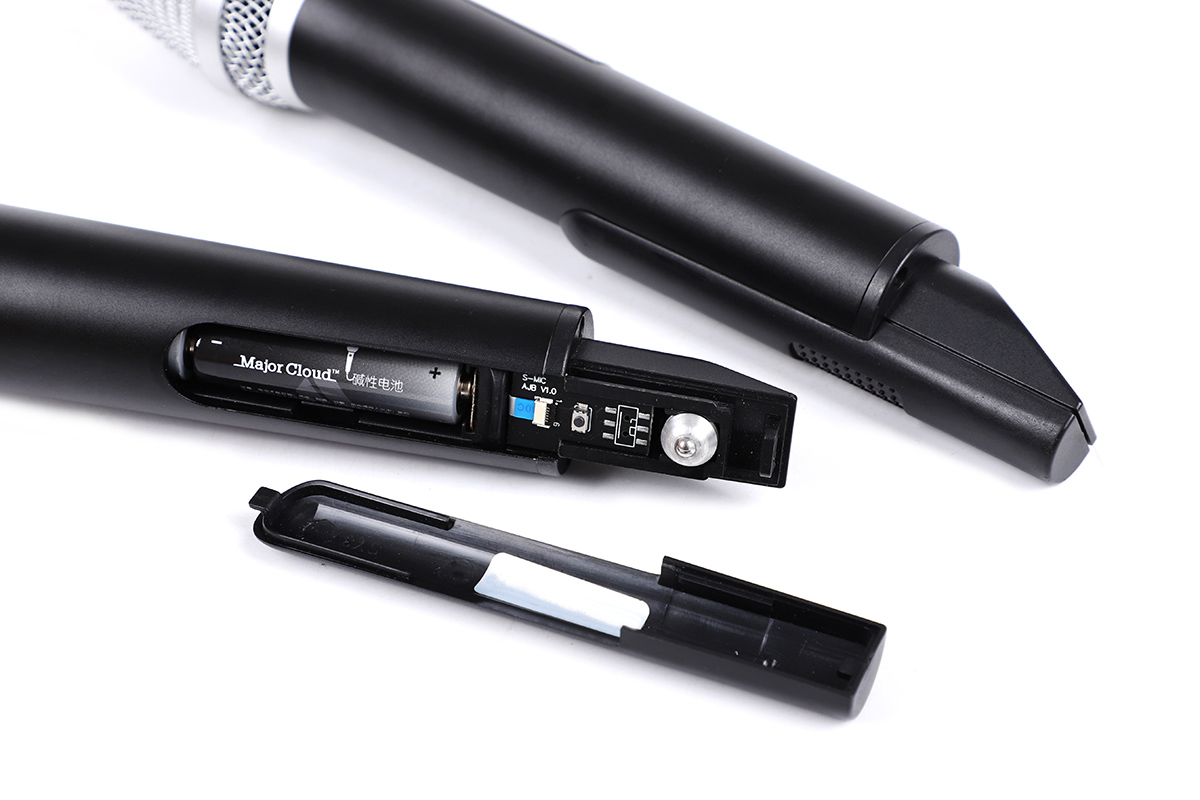

Power Supply14500 lithium battery (3.7V) *2 or AA size 5 battery (1.5V) *2 [Hybrid power technology]

Battery life>6h (lithium battery) / 4h (AA battery)

SizeL=245mm；R=38mm

Weight150g(without battery)


Common Problems


1. When using a rechargeable lithium battery with poor performance, its voltage reduction circuit will interfere with the performance of the receiver.

2. When multiple sets of equipment are used at the same time, if the frequency point is set improperly, it is easy to cause performance degradation due to intermodulation interference.


Notes


  1. This model of product is recommended to be used with the iweex® brand, the same technology platform, and the model is DTR22X ("X" is any number) receiver device.

  2. Please use batteries from regular manufacturers with qualified products! Counterfeit batteries may cause leakage or even explosion. If any abnormality is found in the battery, please stop the equipment immediately and replace it to avoid the risk of explosion or damage to the equipment!


Documents


1_Manual_EN_iweex（DWM223）Digital Audio UHF Wireless System_Handhold Mic.(freq. Group)-2024.07.14



Reference Solution


Digital Wireless Mic Solution


Standard Accessories：

=========================

14500 Li-battery *2

Storage package *1

Manual *1

Qualification certificate *1
