*Wired and wireless integration, where the host uniformly speaks, schedules, and manages wired and wireless units.

*The wireless subsystem has audio clock synchronization transmission technology, with a delay of less than 4ms. The wired subsystem uses uncompressed audio transmission to ensure audio quality. The wired subsystem adopts customized shielded 6-core cables.

*The host can connect wirelessly to the conference system's wireless gateway (AP), expanding the wireless access range.

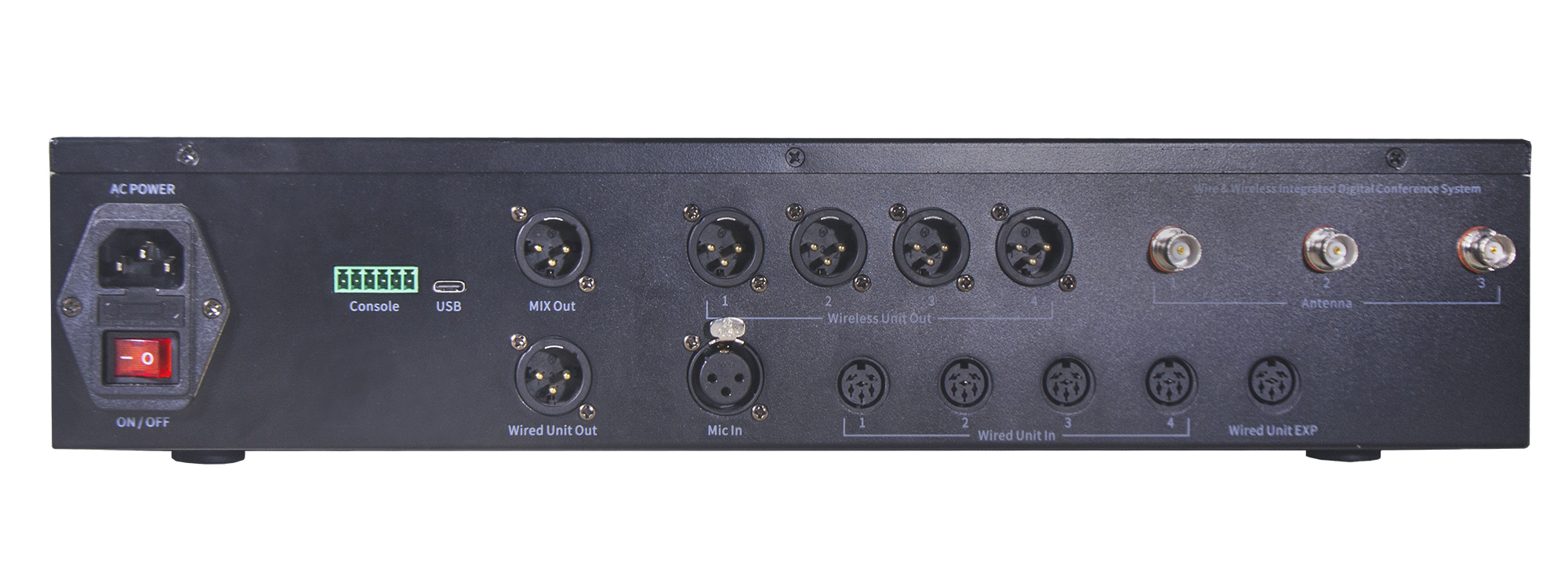

*MIX channel volume control. The wireless subsystem includes 4 independent channel outputs and 1 MIX output. One MIX audio output from the wired subsystem*

*Support 4-8 units to speak simultaneously, with two subsystems configured uniformly.

*Based on iMeetingPlat ™ A technological platform that brings a brand new user experience. The meeting status and configuration are clear at a glance.

*Meeting mode: First in, First out/quantity limit.

*Date, time, week settings/Volume and brightness settings/Language settings/Unit number/Wireless environment scanning/Visca, Peleco D, Peleco P camera protocols.

*Supports three roles: Chairman, VIP, and Attendee, with software definition and easy and convenient management of member attributes.

*The long horizontal piano key speaker button unique to the system terminal, with a silent design, provides an excellent experience.

-Wired subsystem-

*Using high-speed 6-core digital cables to transmit data and power, the transmission distance can reach up to 150 meters.

*The sampling frequency is 48KHz, with a frequency response of 20Hz-20kHz, achieving a CD level sound quality effect.

*The wired subsystem has 4 inputs, with a maximum of 32 connections per channel and a maximum support of 128 units.

*Supports circular handle function. Equipped with hot swappable protection and short circuit protection functions.

*The system terminal adopts a metal structure shielding design and circuit anti-interference design, which is not easily affected by signal interference.

-Wireless subsystem-

*Real time frequency scanning and automatic frequency switching technology. The unit uses the optimal frequency for each speech.

*Support wireless gateway access, wireless access range is no longer limited by host location.

*The wireless gateway supports up to 256 wireless speaking units.

*Supports capacitive microphone handheld speaker unit, handheld terminal automatic sleep, 3D motion wake-up.

*The wireless terminal adopts "hybrid" patented power supply technology, and lithium batteries and No. 5 batteries can be freely switched for use.

Communication mode

Voice channel: analog communication, control channel: digital communication

Communication mode

Voice channel: digital communication, control channel: digital communication
