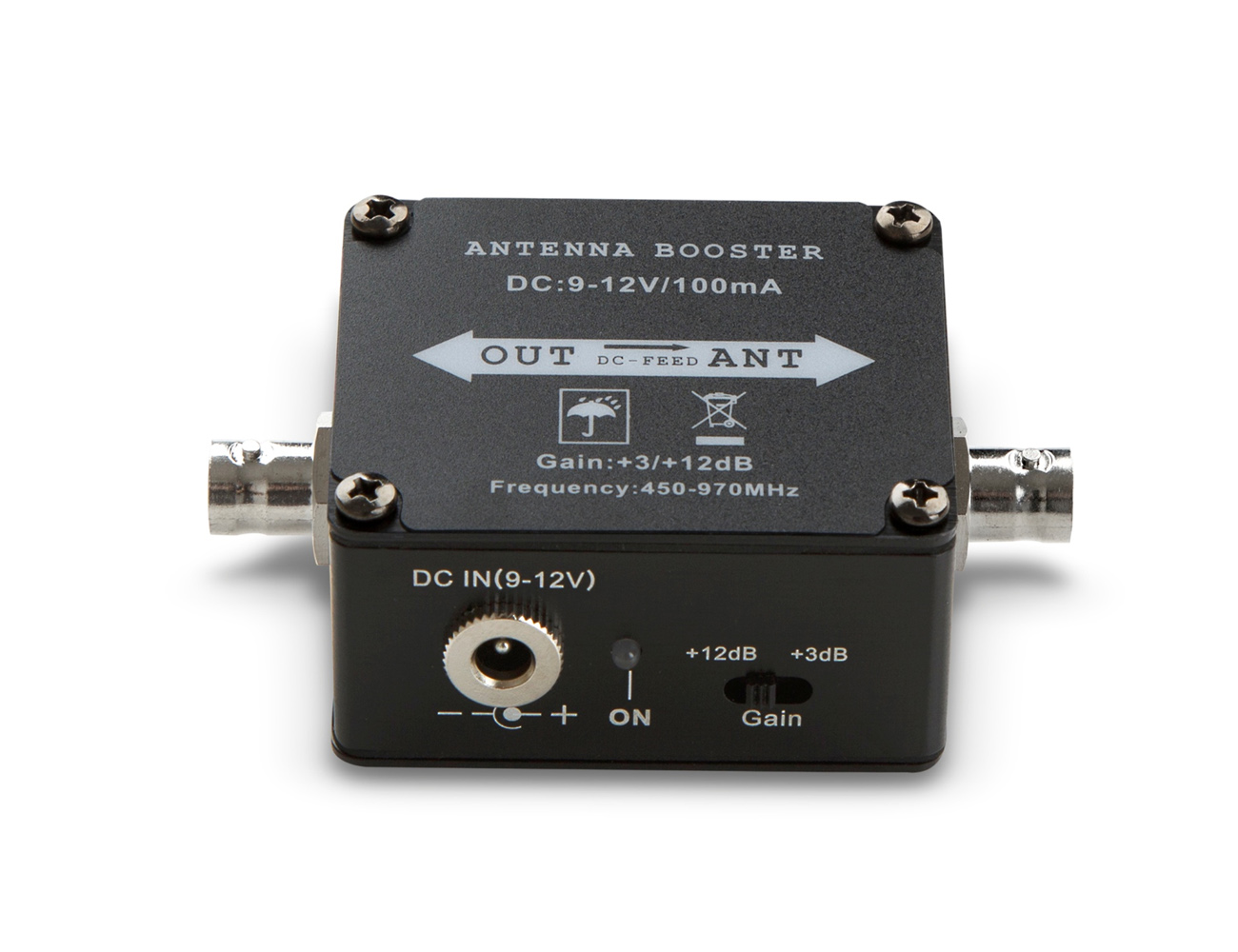

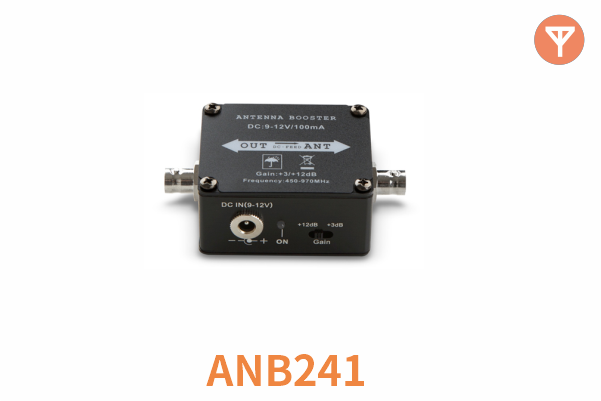

ANB241

Features

• The relay amplifier is an active RF signal amplifier that provides antenna RF signal amplification to compensate for signal attenuation on long-distance high-frequency connection cables, improve the working range and stability of the wireless system.

• Each relay amplifier can compensate for line losses in cables up to 35 meters long, making it an ideal antenna system auxiliary.

• The antenna interface provides an amplified voltage of 12V150mA, which can transmit the amplified voltage to the previous stage antenna or relay amplifier.

• The second level of gain is adjustable and can match wireless systems in different environments.

Parameters

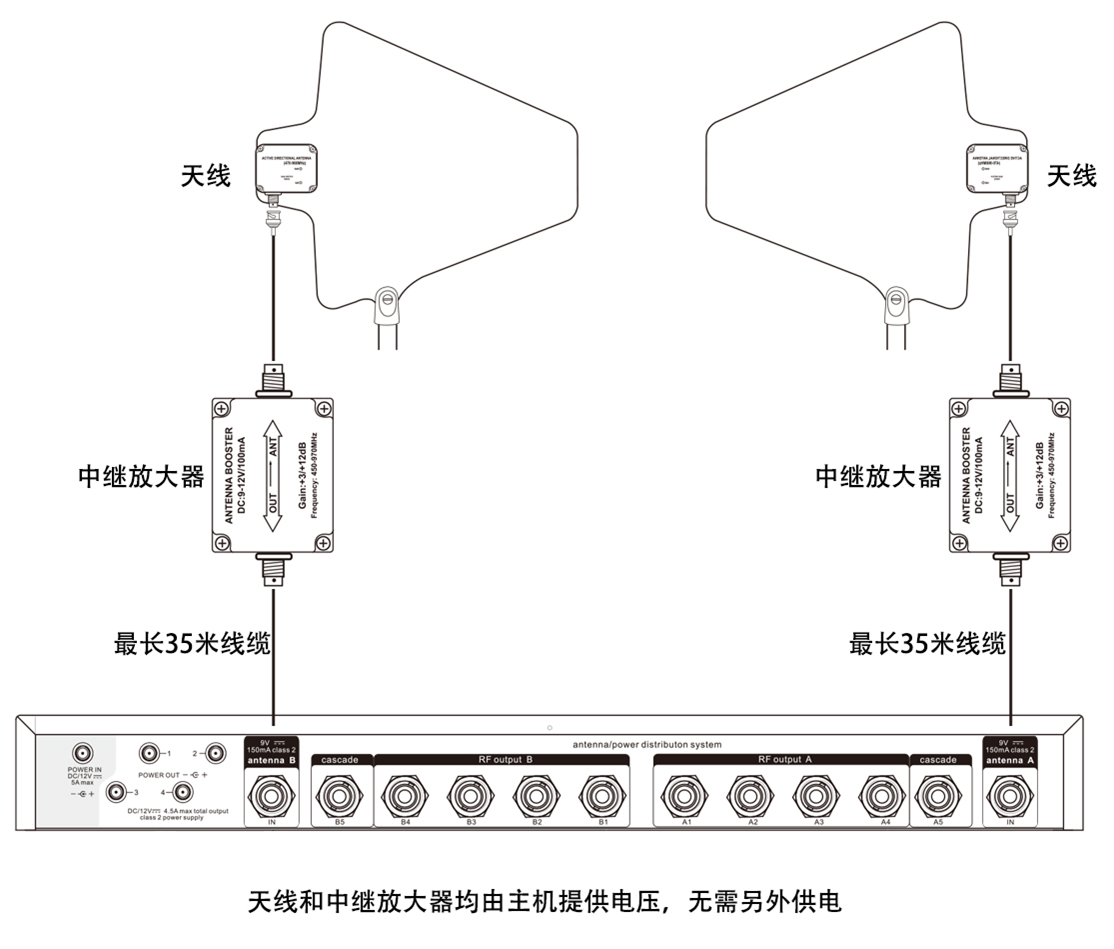

Logic Figure

Documents
