Antenna Combiner - 8 in 2 out
❤ Add to collection

Antenna Combiner - 8 in 2 out

a integrated system with amplification function.

The function of a wireless system is established by integrating 8 antenna signals into 2 channels for the wireless receiver.

$640.00
$640.00
$550.00
$550.00
Shipping Weight:0.000KG
Collor：
Quantity:
Buy Now
Add to Cart
Product

a integrated system with amplification function.

The function of a wireless system is established by integrating 8 antenna signals into 2 channels for the wireless receiver.

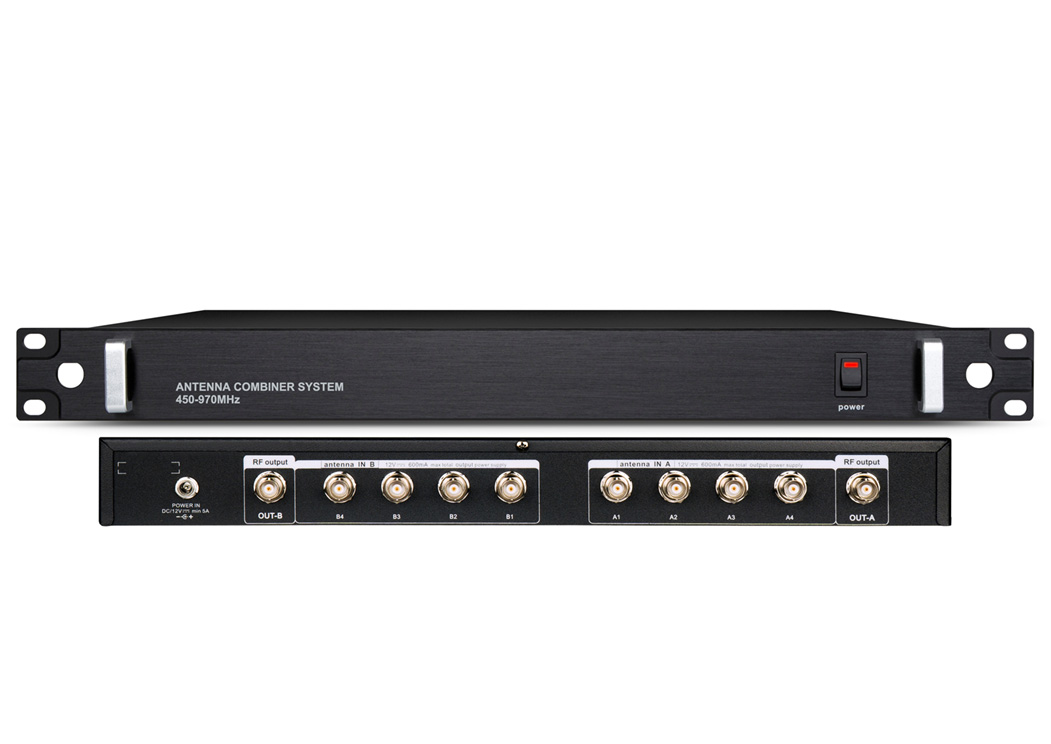

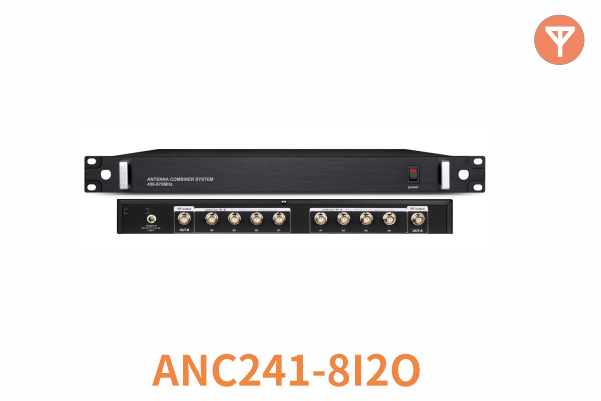

  ANC241-8I2O

   8 in 2 out Antenna Combiner


Features

  • UHF antenna integrated system with amplification function.

  • The function of a wireless system is established by integrating 8 antenna signals into 2 channels for the wireless receiver.

  • It can independently amplify the RF signals of 8 antennas to compensate for the line loss of the antenna cables.

  • Each of the eight antenna input interfaces is capable of providing amplified voltage of 12V150mA.

  • Integrated 2×4 antenna inputs can use 8 antennas at the same time, simplifying messy wiring and making the entire system more concise and stable.

  • Seiko quality pure copper interface, anti-oxidation and anti-corrosion, stable contact, and can work stably in different environments.


Parameters


Frequency range

450～970MHZ


Full band gain

8dB(±3dB)


Input interface

BNC *8


Output interface

BNC *2个


Impedance

50Ω


Input voltage

DC 12V 5A


Antenna amplification voltage

12V 150mA


Size(mm)

480×200×45

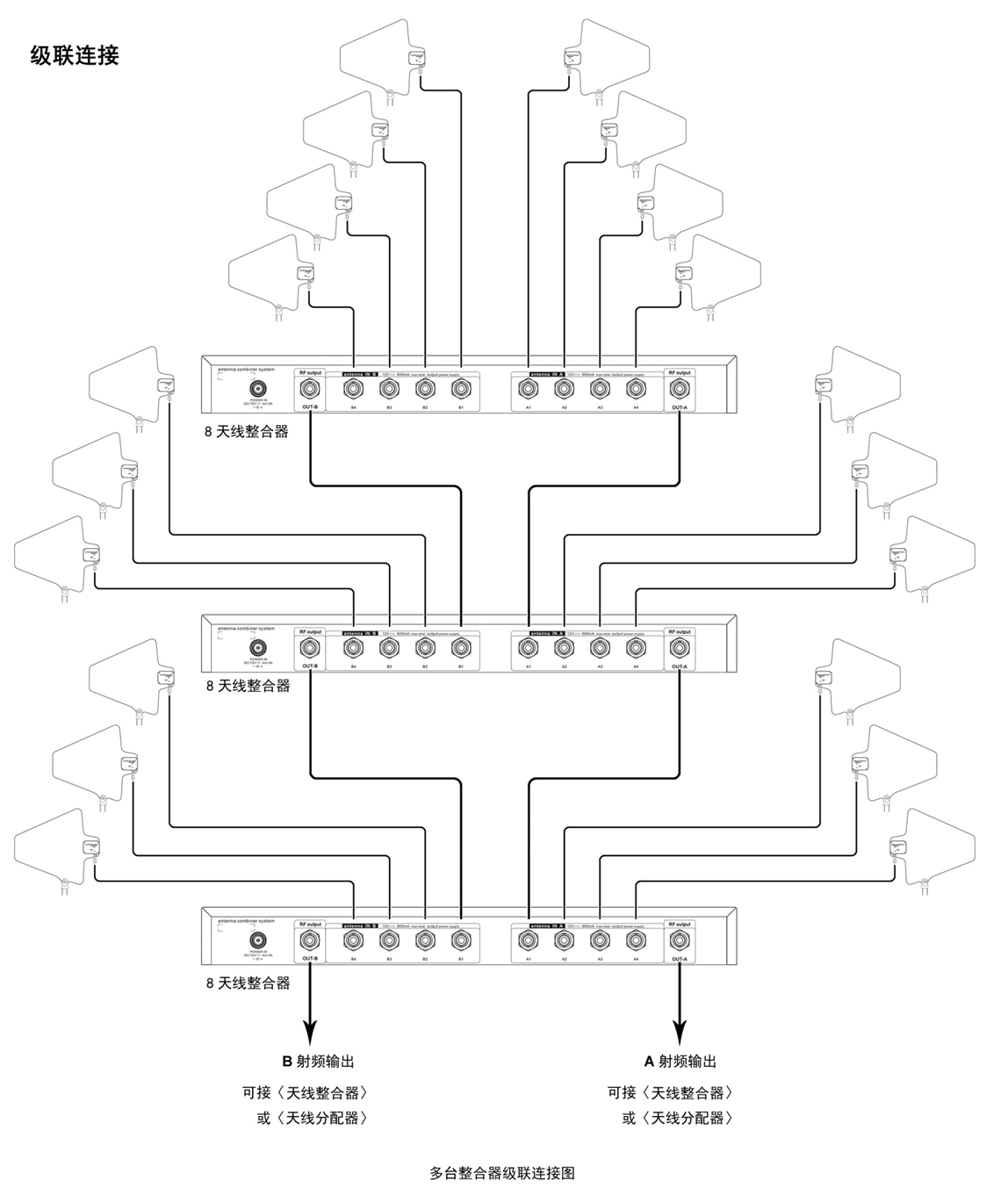

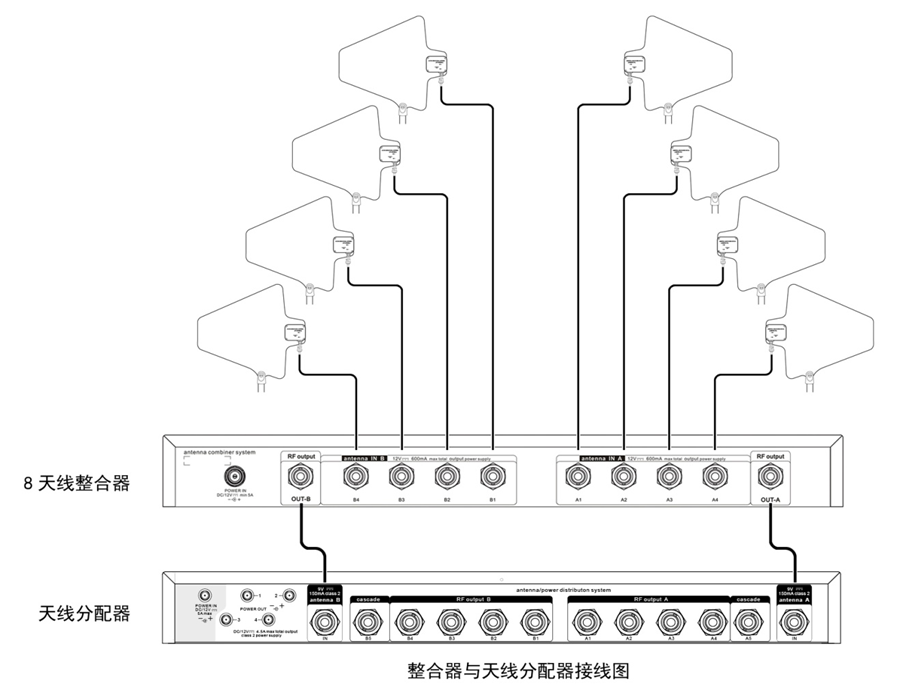

Logic Figure




Documents



2_Manual_EN_GAODIMIC_(ANC241-8I2O)_Antenna Combiner-8 In 2 Out_20241203
