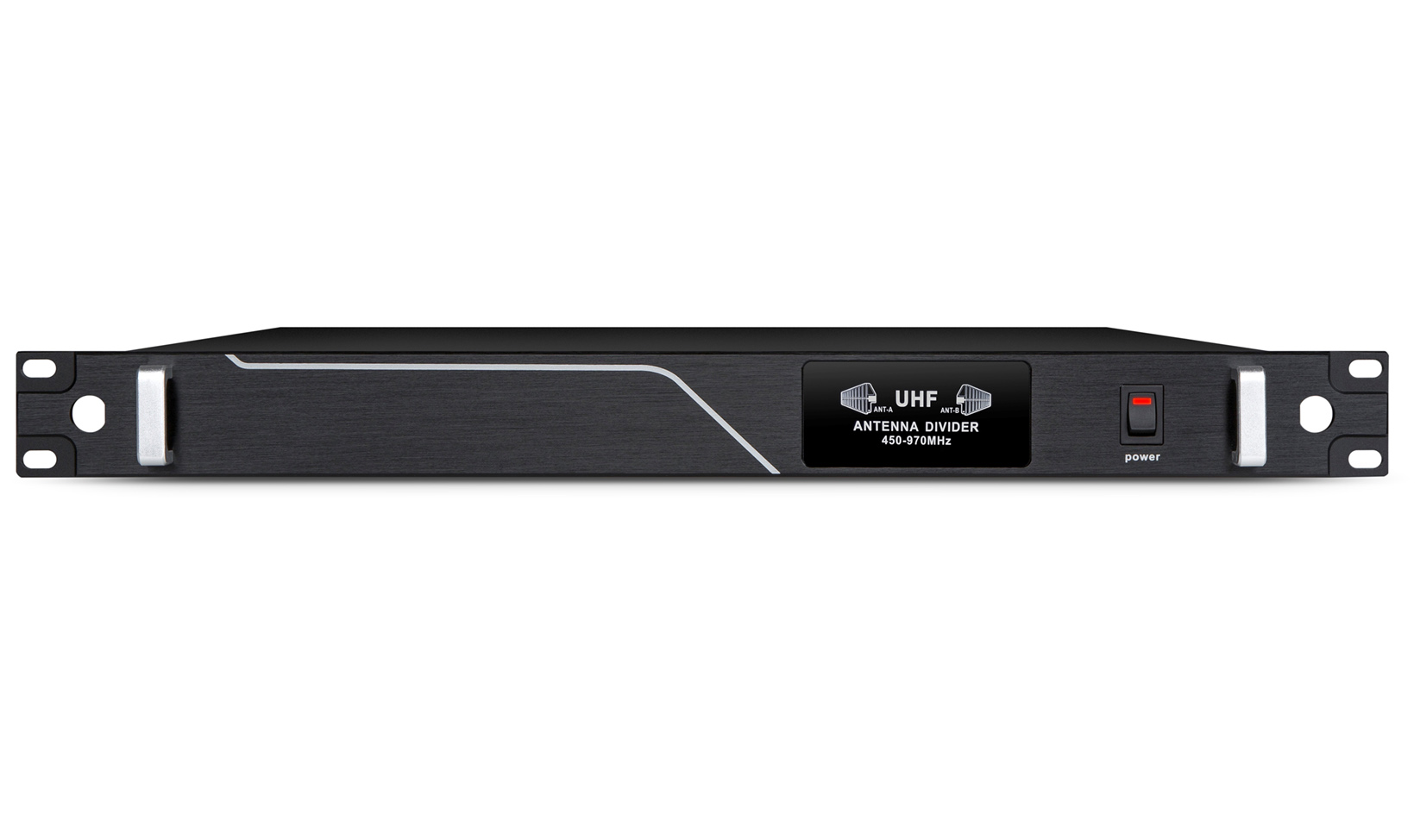

Antenna Distributor - 8 Route 16 Channel

A full-channel UHF antenna distribution system that can direct antenna signals from a pair of antennas to multiple receivers in a multi-channel system.




$342.00
$342.00
$293.00
$293.00
Shipping Weight:0.000KG
Collor：
Quantity:
Buy Now
Add to Cart
Product

A full-channel UHF antenna distribution system that can direct antenna signals from a pair of antennas to multiple receivers in a multi-channel system.

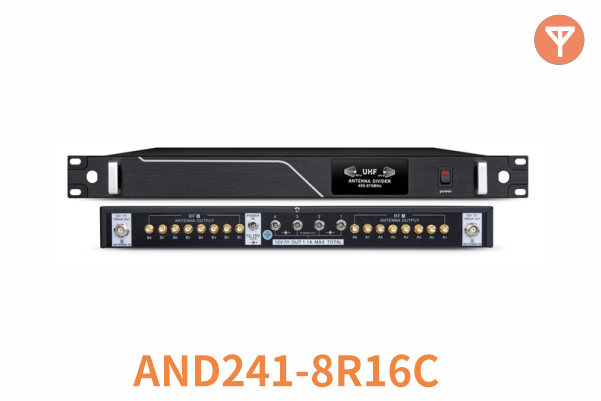

  AND241-8R16C

  Antenna Distributor - 8 Route 16 Channel


Features

  • A full-channel UHF antenna distribution system that can direct antenna signals from a pair of antennas to multiple receivers in a multi-channel system.

  • A splitter amplifies the RF signal to compensate for attenuation during the distribution process.

  • Low-noise, high-quality components maintain a clear signal with minimal distortion.

  • The external 12V5A switching power supply can provide four sets of 12V DC power to the wireless receiver.

  • A 16-channel antenna splitter host can support up to 16 antenna channel ports.

  • The wide channel design is compatible with all wireless microphone receivers operating within the frequency range.


Parameters


Frequency range

450～970MHZ


Impedance

50Ω


Input voltage

DC 12V 5A


Output DC voltage

12V four sets of DC output terminals


Antenna amplification voltage

12V 150mA


Size (mm)

480×200×45





Logic Figure





Documents



2_Manual_[ENJP] _GAODIMIC_(AND241)_Antenna Distributor_20260106
