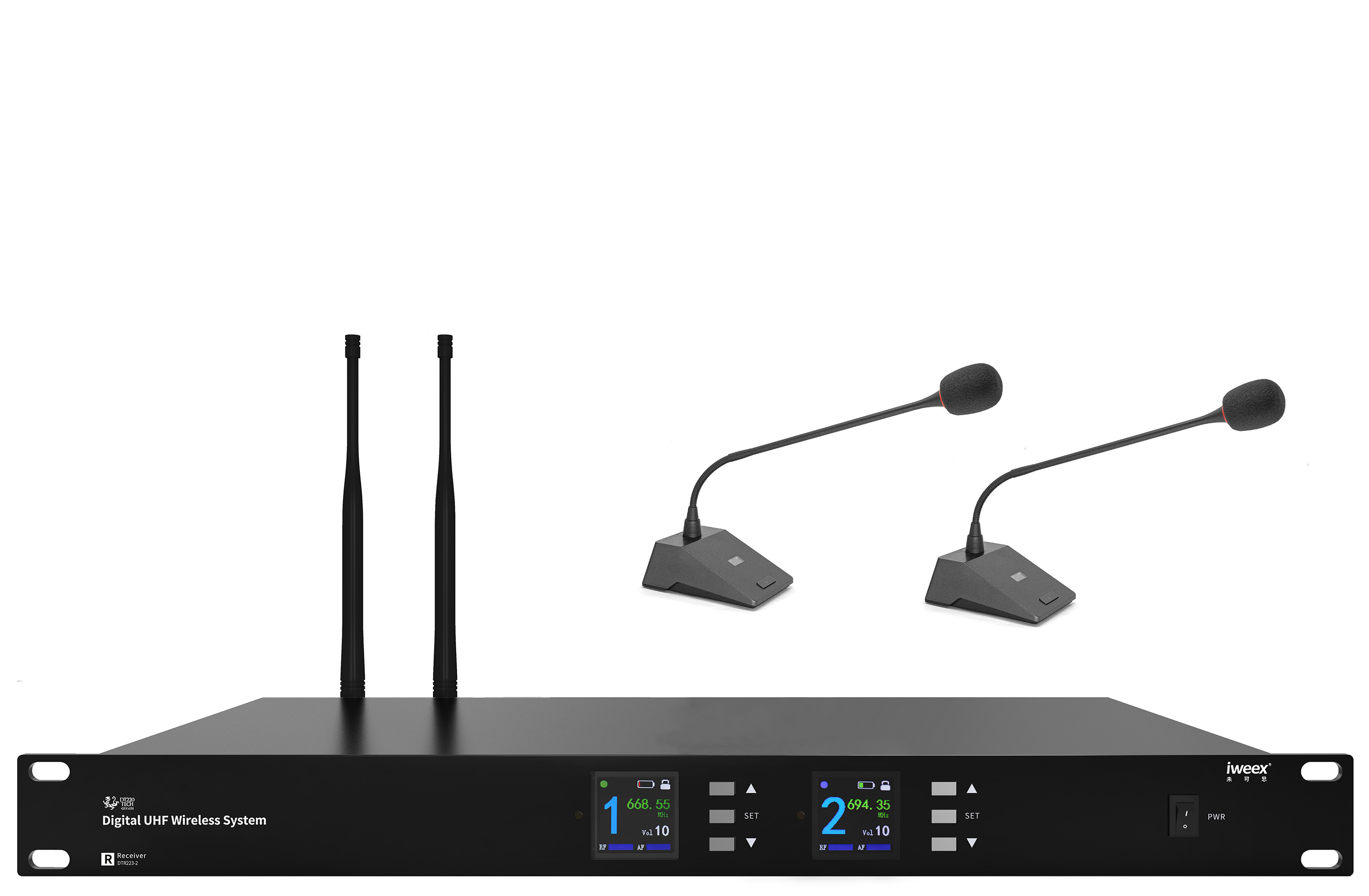

Digital Wireless Mic. Kit - 2 Channels Gooseneck [2024]
❤ Add to collection

Digital Wireless Mic. Kit - 2 Channels Gooseneck [2024]

Based on the DT220 TECH digital UHF wirelss platform, 2 channels wireless gooseneck mic. kit, for conference scenarios.





$0.00
$0.00
$414.00
$414.00
Weight:0.000KG
Collor：
Quantity：
Buy now
Add to cart
Product

Based on the DT220 TECH digital UHF wirelss platform, 2 channels wireless gooseneck mic. kit, for conference scenarios.





Digital Audio UHF Wireless System

  DWM224G-TG-2

   Digital UHF Wireless Mic. Kit

   - 2 Channels Gooseneck Pole Style [2024]





       4th Generation Digital  Audio UHF Wireless Tech


Application Scenarios


High-end conference scenarios.


Characteristics


▪ Based on "DT220 TECH" digital U-segment wireless audio technology, it features stage studio-level sound quality, anti-interference, anti-crosstalk, high fidelity, high signal-to-noise ratio, low noise floor, and excellent wireless transmission distance.

. Digital audio UHF wireless technology

. 500MHz and 600MHz dual band

. PI/4 DQPSK modulation

. 3000mAH large capacity battery + AA battery, Hybrid Battery technology, automatic switching.

. Battery life > 10h.

. Transmission distance > 70M.

. Delay 4.17ms

. Signal-to-noise ratio > 96dB

. 2.8-inch TFT color screen, rich in functions.


Parameters


 Communication parameters

Transmission band

510~590MHz, 668~698MHz (varies according to different regions)


Modulation

Pi/4 DQPSK


Transmission distance

>70m

 (related to transmitter model, RF signal absorption, reflection, interference and performance options)


Occupied bandwidth

<200KHz (parameter configuration varies according to different regions)


Frequency response

20Hz-20KHz


Transmission delay

4.17 ms


Signal-to-noise ratio96dB (different depending on the transmitter)

Distortion T.H.D<0.03% （@1KHz）(different according to different transmitters)

Phase representation

+30°  ~ -60°


Launch connector

Direct plug-in XLR male socket


Function

Battery, built-in antenna


Microphone index


TypeCapacitor Microphone Core

Sensitivity-45dB±3dB（F=1KHZ,S.P.L=1Pa 0dB=1V/Pa）

Frequency response range100~10K Hz

Output impedance600Ω ± 30% （@1KHz)

DirectivitySupercardioid polar pattern

Physical and electrical indicators

Power Supply

Build-in 3000mAH Li battery + AA battery *3

[Hybrid Battery Supply]


Battery life>10h

Size

Straight Pole : 240mm*64mm*45mm

Gooseneck Pole : L=400mm；R=40mm

Base ：150mm*120mm*8mm


Weight

Straight Pole : 280g

Gooseneck Pole : 80g

Base ：523g


Common Problems


1. When using a rechargeable lithium battery with poor performance, its voltage reduction circuit will interfere with the performance of the receiver.

2. When multiple sets of equipment are used at the same time, if the frequency point is set improperly, it is easy to cause performance degradation due to intermodulation interference.


Notes


  1. This model of product is recommended to be used with the iweex® brand, the same technology platform, and the model is DTR22X ("X" is any number) receiver device.

  2. Please use batteries from regular manufacturers with qualified products! Counterfeit batteries may cause leakage or even explosion. If any abnormality is found in the battery, please stop the equipment immediately and replace it to avoid the risk of explosion or damage to the equipment!


Documents


1_Manual_EN_iweex(DWM224-T)_Digital Audio UHF Wireless System_Desktop Mic_2024.07.12


1_Manual_EN_iweex(DTR223 Series) Digital Audio UHF Wireless System_Universal Receiver(Freq._Group)_2024.07.14




Standard Accessories：

=========================

Digital Wireless Mic. Gooseneck 2024 *2

4 Channels Digital Wireless Receiver *1

Antenna *2 (base on the freqency band).

220V/12V & 1A Power Supply *1

Manual *1

Qualification certificate *1
