[4th Gen] Digital UHF Wireless System - Transmitter [Portable]
❤ Add to collection

[4th Gen] Digital UHF Wireless System - Transmitter [Portable]

4th Generation Plus Edition, with excellent performance for sound measurement and high class stage performance. Flagship type.

$0.00
$0.00
$278.00
$278.00
Weight:0.000KG
Collor：
Quantity：
Buy now
Add to cart
Product

4th Generation Plus Edition, with excellent performance for sound measurement and high class stage performance. Flagship type.

 Digital UHF Wireless System

  DTT228-P

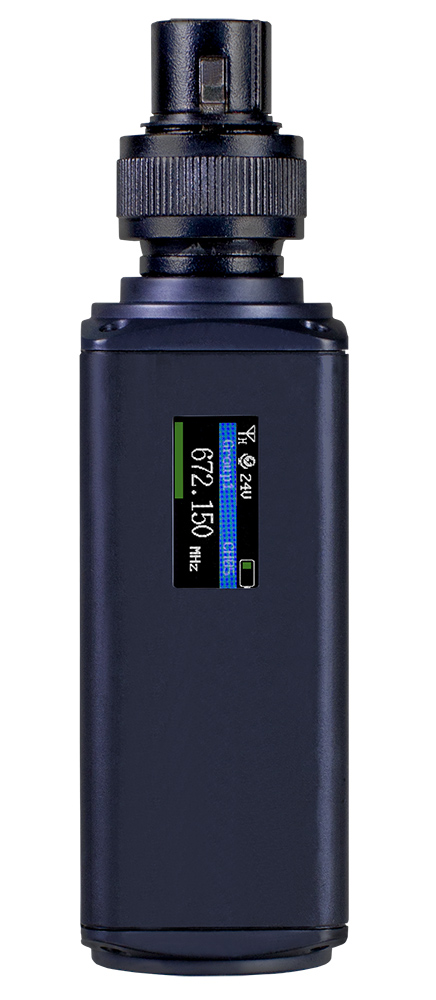

  Digital UHF Wireless System Portable Transmitter

  [Flagship Edition]





Application Scenarios


1. In large-scale performance sound projects, replace the cable of wired microphone;

2. Used for pickup and forwarding of various sound sources (instruments, harmony, chorus) on stage;

3. Connect the sound field test (audio analysis software such as SMAART LIVE, SYSTUNED, etc.); complete the sound field measurement.

Characteristic


. Digital audio UHF wireless technology

. Signal-to-noise ratio>123dB, domestic top indicator

. 500MHz and 600MHz dual-band

. Noise floor voltage = 6mV, monitoring level noise floor control

. PI/4 DQPSK modulation

. Wireless transmission frequency response 20Hz~20KHz.

. Within the 20~20KHz frequency band, attenuation <2dB.

. Within the 20~20KHz frequency band, phase deviation 30°~60°.

. Transmission distance>50M.

. Delay 4.17ms

. Signal-to-noise ratio>123dB (with AP device detection screenshot)

. TFT color screen, rich functions

. Hybrid power supply tech.

Parameters


Freq. Band

510~590MHz，668~698MHz


Modulation Mode

Pi/4 DQPSK


Transmission Distance

>50m (with portable Receiver）; >100 (with Rack Mounted Receiver), (Related to wireless environment）


Transmission Concurrency

Up to 36 simultaneous transmissions


S/N>123dB

Freq. Response

20Hz-20KHz


Transmission Delay

4.17ms


Phase Performance

+30° ~ -60°


Power Supply

AA5 battery (1.5V)*2 /

14500 lithium battery (3.7V)*2 /

18650 lithium battery (3.7V)*1

(Hybrid power technology)

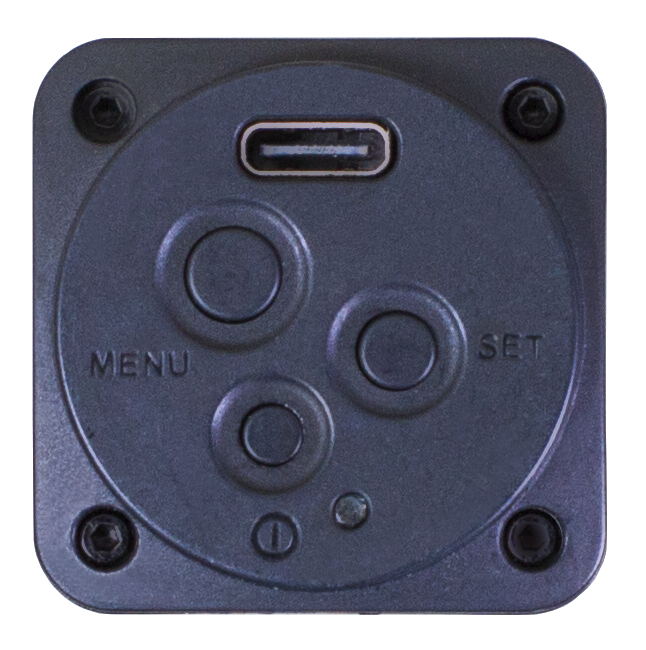

Power Interface

USB - C


Endurance

 18650 Li battery: >10h(@48V) / >14h(@24V) / >18h

 AA battery: >3h(@48V) / >5h(@24V) / >6h


Size

124mm*34mm*34mm  / 69g ( without antenna)

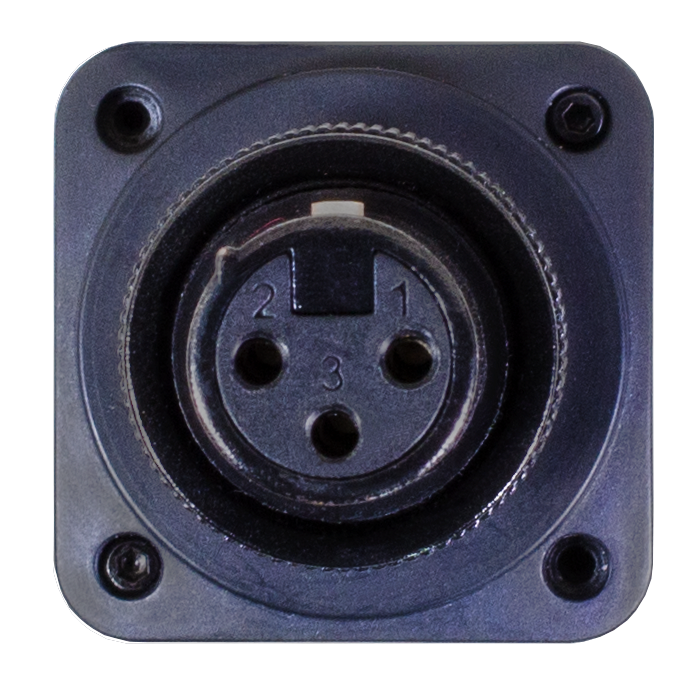

Launch Connector

Cannon Interface


Function

Power, wireless channel scanning


Questions Frequently Asked


1. If there is no signal output when connecting the condenser microphone, please check if the phantom power supply is selected.

2. When charging lithium batteries with poor performance, their step-down circuit will interfere with the performance of the receiver.

3. When multiple devices are used simultaneously, improper frequency setting can easily lead to performance degradation due to intermodulation interference.

4. Some brands of MIC may cause interference due to poor signal shielding, which can be solved by using Cannon extension tubes.

Notes

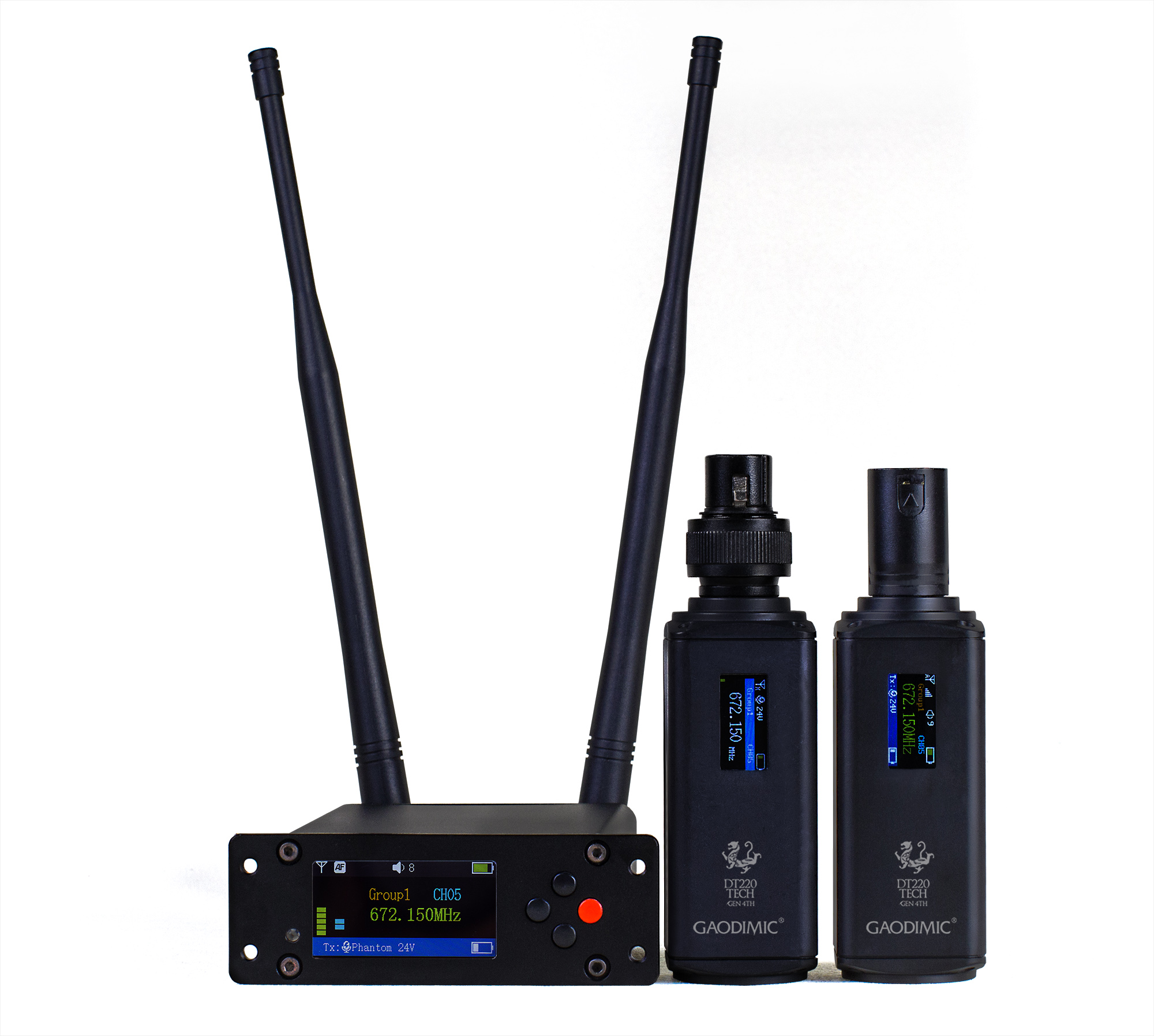

  1. This model of product is recommended to be used in conjunction with iweex ® Unpredictable ® Brand, same technology platform, model DTR22X ("X" is any number) receiver device.

  2. Please use a legitimate and qualified product battery! Fake and inferior batteries may cause leakage or even explosions. If any abnormalities are found in the battery, please stop the equipment immediately and replace it to avoid the risk of explosion or equipment damage!


Documents


1_Manual_CNEN_GAODIMIC (DT228)_Digital UHF Wireless System (ALL)_20250710


23_Digital UHF Wireless System  Comparison_241023




Lastest Firmware Refereced


Released Date 2025.4.11

Firmware_GAODIMIC_DTT228-P (Portable Trasnmitter)_TX_V1210_20250411.bin




The device supports OTA upgrade, and please rerfer to the OTA upgrade guide.

It is recommended to upgrade under guidance, or return to the manufacturer for upgrade, or have the upgrade performed by a designated repair shop.

Please perform OTA upgrades in compliance with local regulations.

Incorrect OTA upgrade operations may cause device software damage and inability to boot. Please assess the risks yourself！






Standard Accessories：

=========================

14500 Li-battery *2

USB-C recharge cable *1

Storage package *1

Manual *1

Qualification certificate *1
