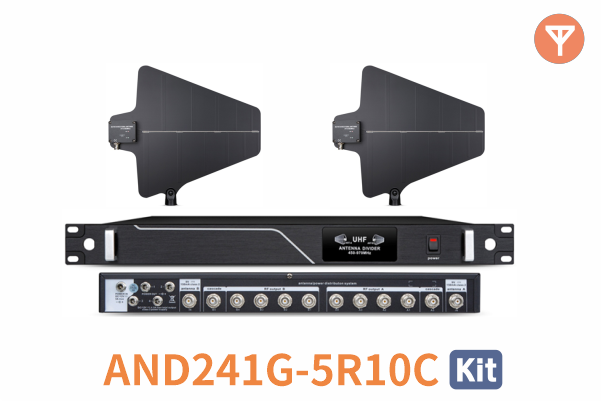

Antenna Distributor & Anttenna Kit - 5 Route 10 Channel

Adopt new antenna, adjustable gain module, electronic ticket display. The UHF antenna allocation system of the full channel can guide the antenna signal from a pair of antenna to multiple receivers in multi -channel systems.

$150.00
$150.00
$427.00
$427.00
Shipping Weight:0.000KG
Collor：
Quantity:
Buy Now
Add to Cart
Product

Adopt new antenna, adjustable gain module, electronic ticket display. The UHF antenna allocation system of the full channel can guide the antenna signal from a pair of antenna to multiple receivers in multi -channel systems.



  AND241G-5R10C

   Antenna Distributor & Anttenna Kit - 5 Route 10 Channel


Features

  • Adopt new antenna, adjustable gain module, electronic ticket display.

  • The UHF antenna allocation system of the full channel can guide the antenna signal from a pair of antenna to multiple receivers in multi-channel systems.

  • The distributor will amplify the radio frequency signal to make up for the attenuation during the distribution.

  • Low noise and high -quality components can maintain clear signals and have the minimum distortion.

  • The external 12V5A switching power supply can provide four sets of 12V DC power supplies for wireless receiver.

  • A 8 -channel antenna allocation host supports up to 8 antenna channel ports.

  • It can be compatible with all wireless microphone receivers who work within the frequency range.


Parameters


Frequency range

450～970MHZ


Impedance

50Ω


Input voltage

DC 12V 5A


Output DC voltage

12V four sets of DC output terminals


Antenna amplification voltage

12V 150mA


Size (mm)

480×200×45

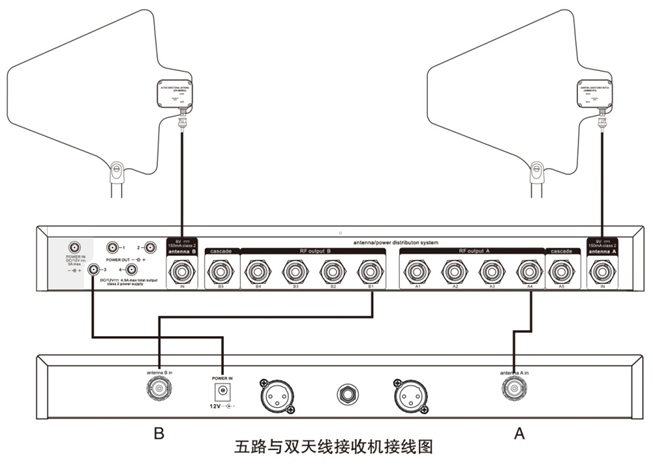

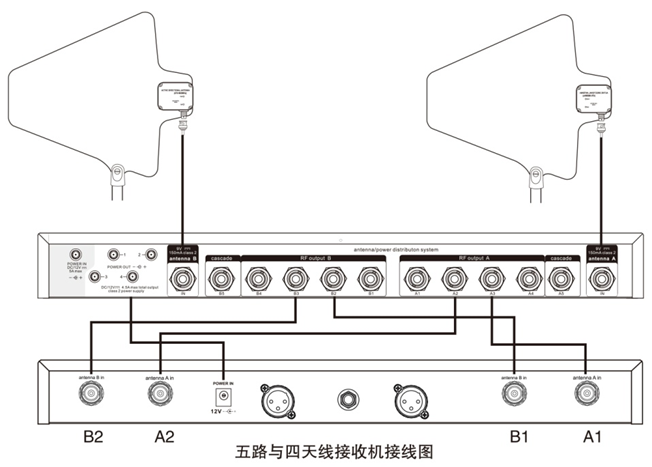

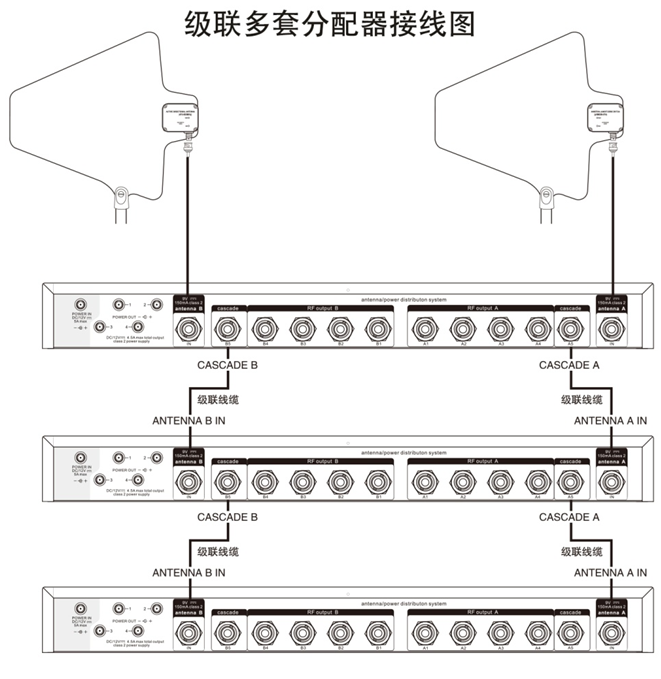

Logic Figure





Documents



Refer to the documentation for each component.
