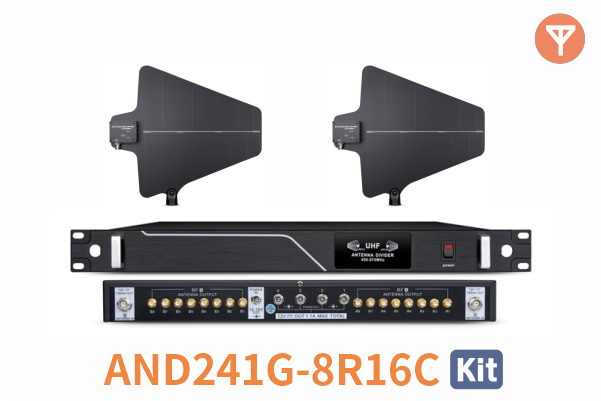

Antenna Distributor & Anttenna Kit - 8 Route 16 Channel

Adopt the new antenna, adjustable gain module, and electronic ticket display. The UHF antenna allocation system of the full channel can guide the antenna signal from a pair of antenna to multiple receivers in multi -channel systems.

$150.00
$150.00
$508.00
$508.00
Shipping Weight:0.000KG
Collor：
Quantity:
Buy Now
Add to Cart
Product

Adopt the new antenna, adjustable gain module, and electronic ticket display. The UHF antenna allocation system of the full channel can guide the antenna signal from a pair of antenna to multiple receivers in multi -channel systems.



  AND241G-8R16C

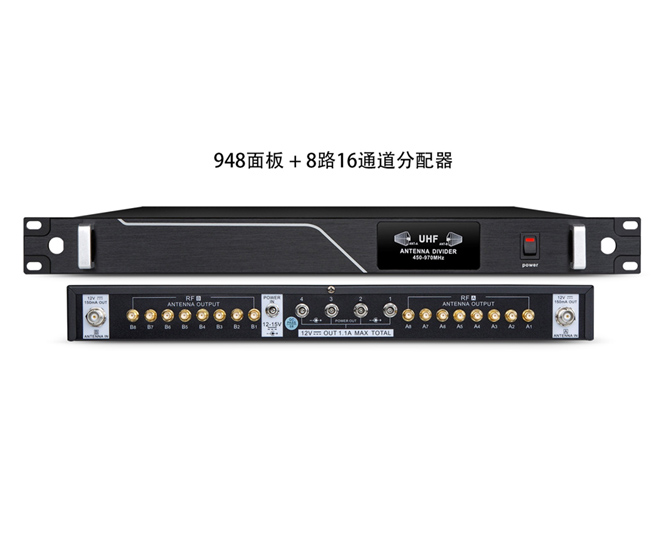

   Antenna Distributor & Anttenna Kit - 8 Route 16 Channel


Features

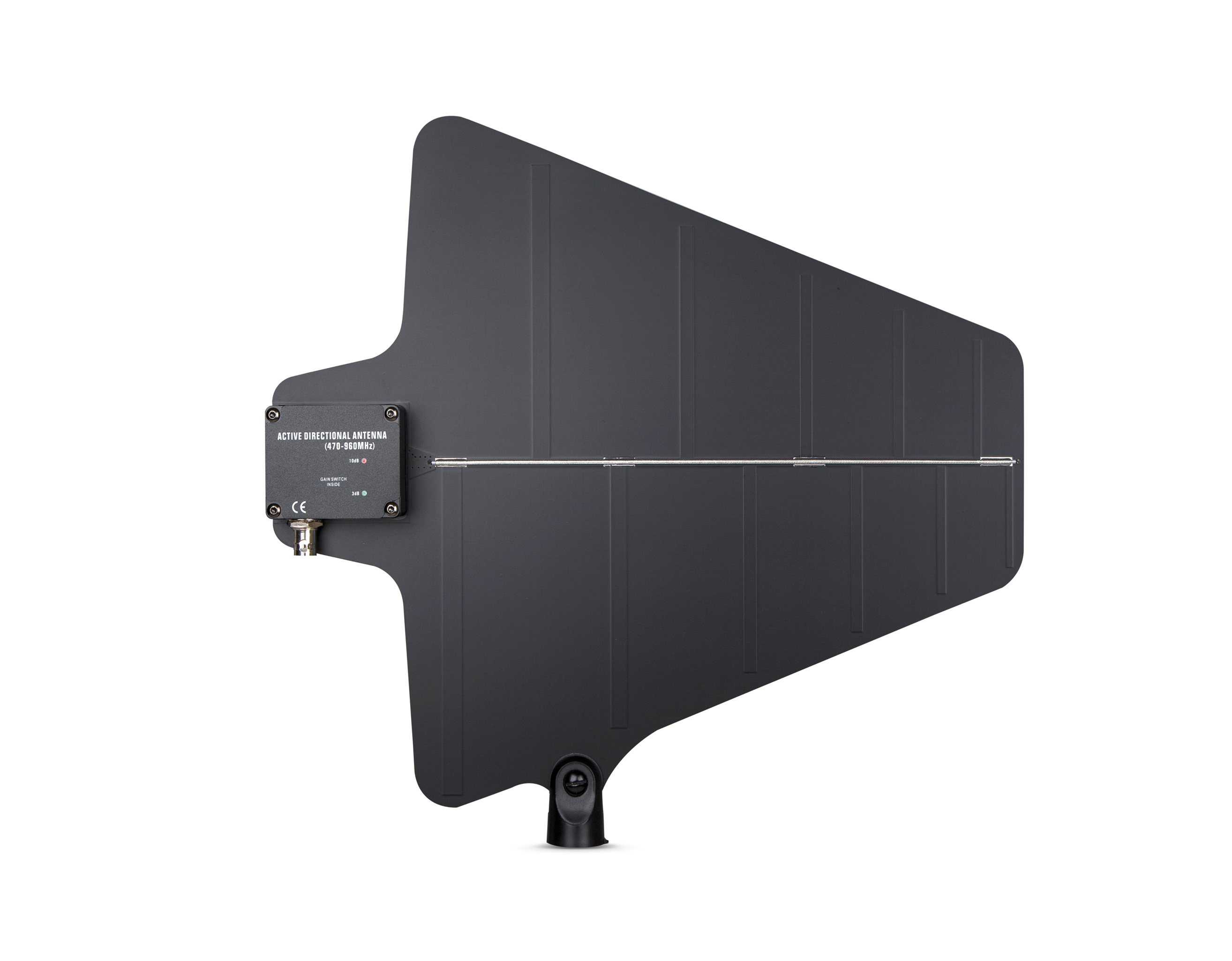

  • Adopt the new antenna, adjustable gain module, and electronic ticket display.

  • The UHF antenna allocation system of the full channel can guide the antenna signal from a pair of antenna to multiple receivers in multi -channel systems.

  • The distributor will amplify the radio frequency signal to make up for the attenuation during the distribution.

  • Low noise and high -quality components can maintain clear signals and have the minimum distortion.

  • The external 12V5A switching power supply can provide four sets of 12V DC power supplies for wireless receiver.

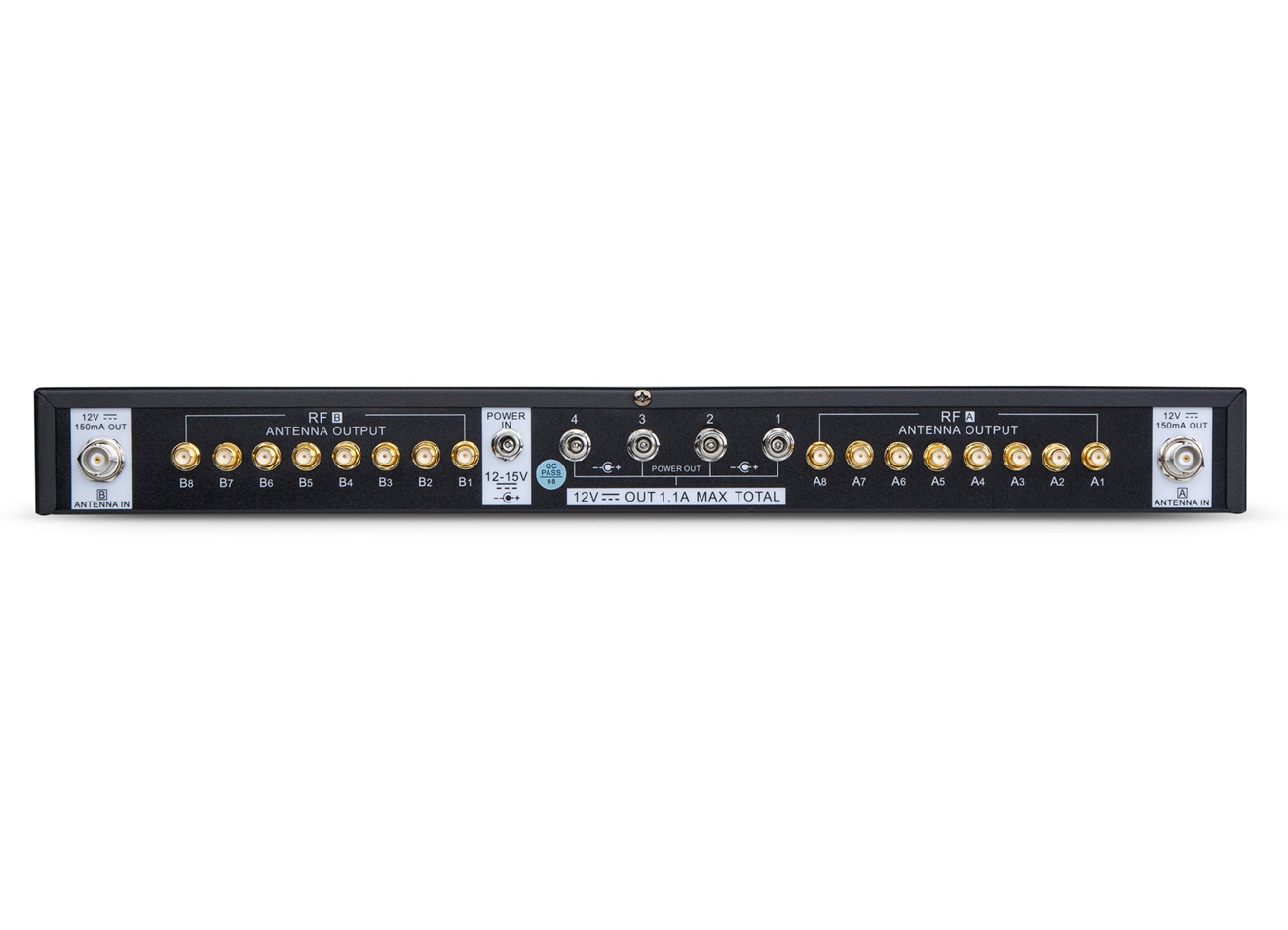

  • A 8 -channel antenna allocation host supports up to 8 antenna channel ports.

  • It can be compatible with all wireless microphone receivers who work within the frequency range.


Parameters


Frequency range

450～970MHZ


Impedance

50Ω


Input voltage

DC 12V 5A


Output DC voltage

12V four sets of DC output terminals


Antenna amplification voltage

12V 150mA


Size (mm)

480×200×45

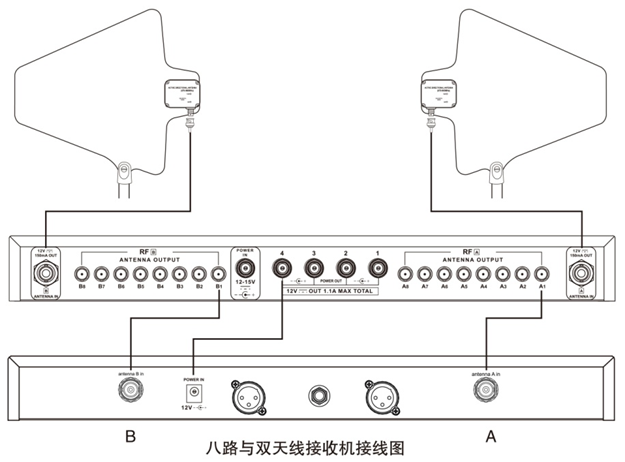

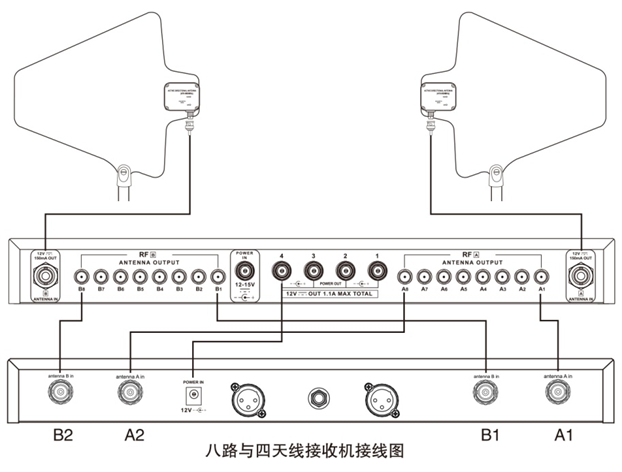

Logic Figure





Documents



Refer to the documentation for each component.
