[MELLab] Meaurement Mic.

MEL Laboratory was established in Rome in 1997. Its test microphones have been recognized by many audio experts in the European and American stage design industry. MYc-3 is its classic test microphone, and its performance is comparable to that of M23. Its excellent performance meets the needs of audio equipment manufacturers and large-scale concerts.

$0.00
$350.00
$350.00
$350.00
Weight:0.500KG
Quantity：
Buy now
Add to cart
Product

MEL Laboratory was established in Rome in 1997. Its test microphones have been recognized by many audio experts in the European and American stage design industry. MYc-3 is its classic test microphone, and its performance is comparable to that of M23. Its excellent performance meets the needs of audio equipment manufacturers and large-scale concerts.

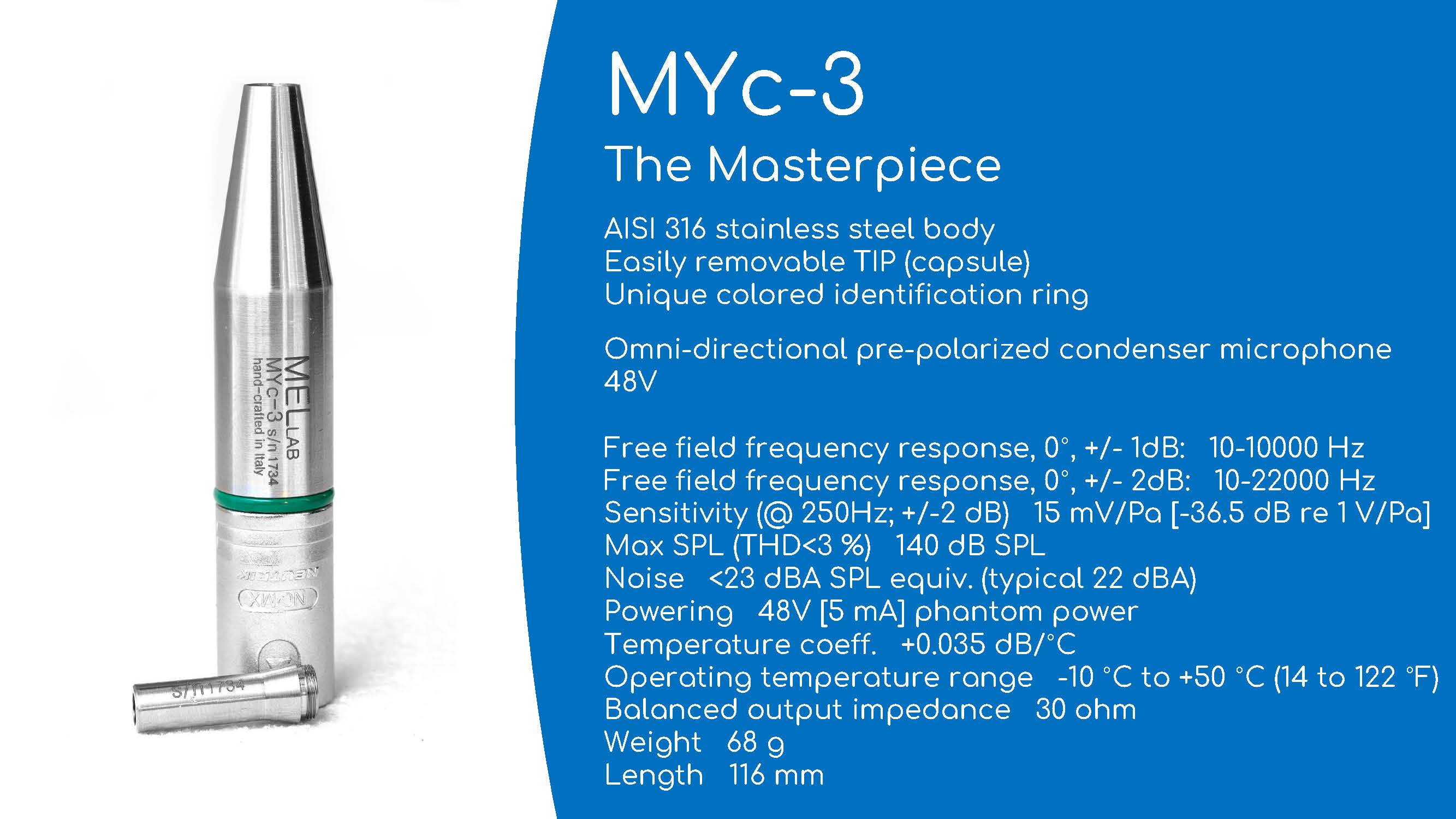

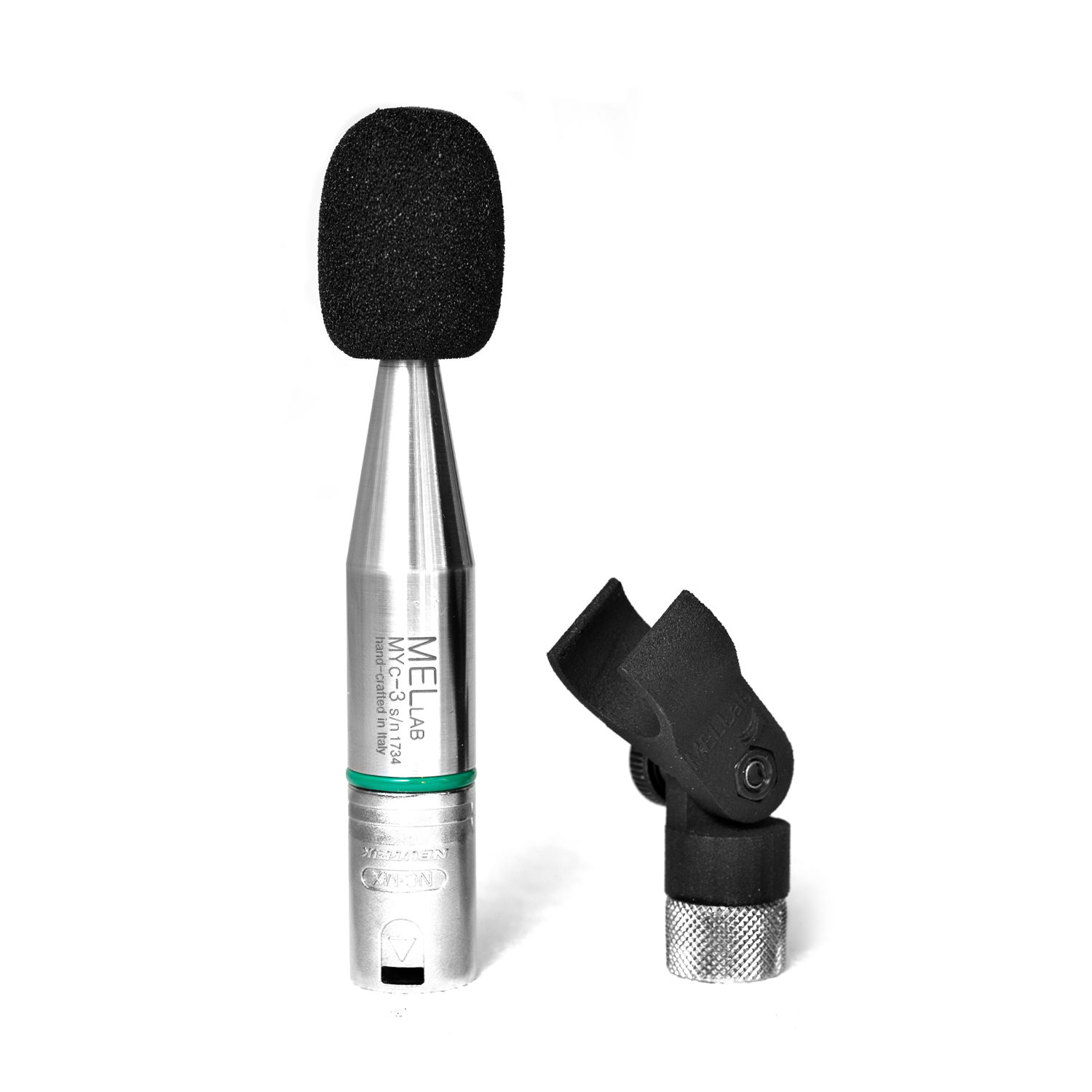

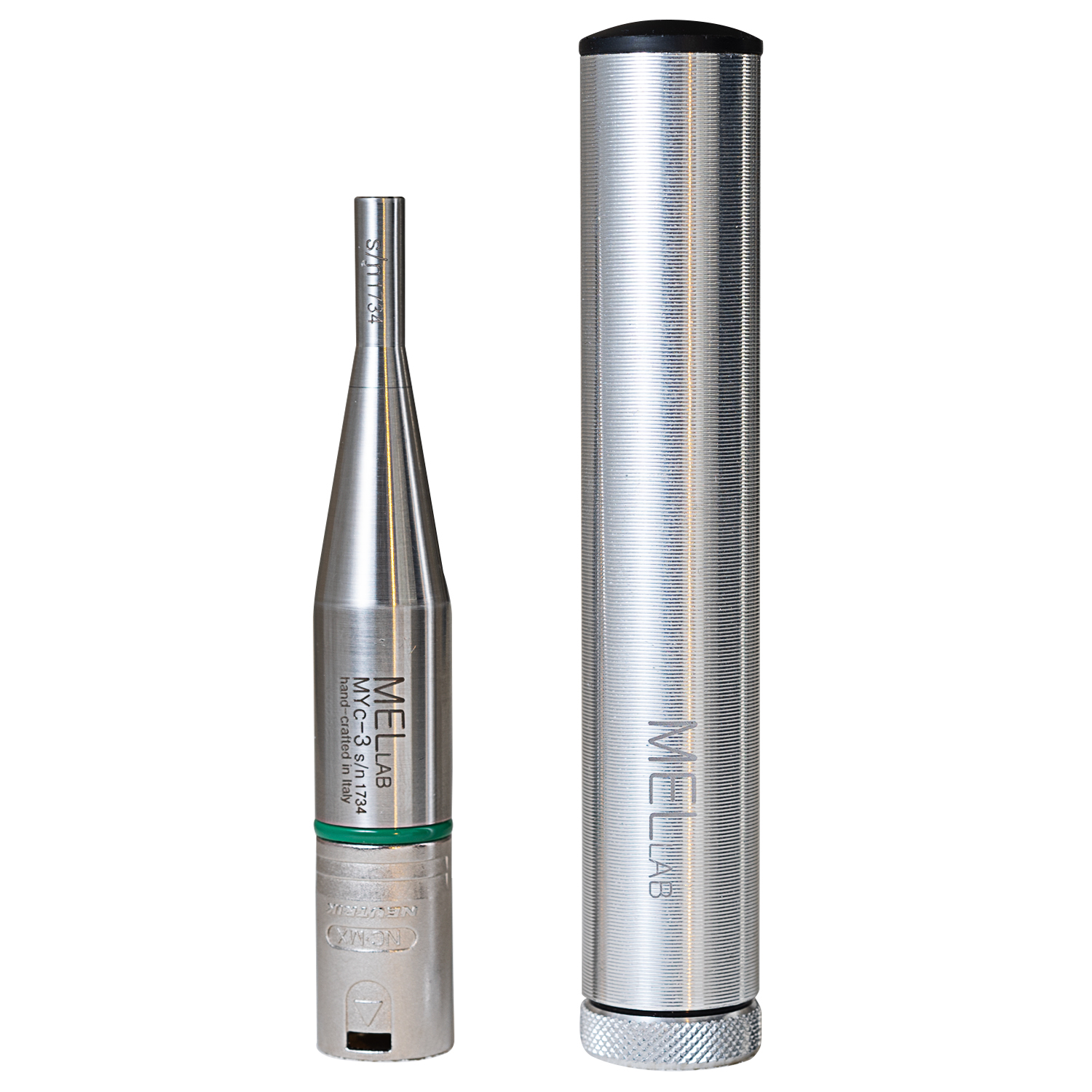

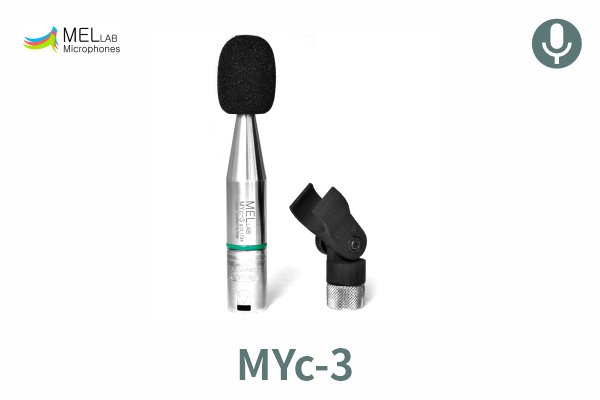

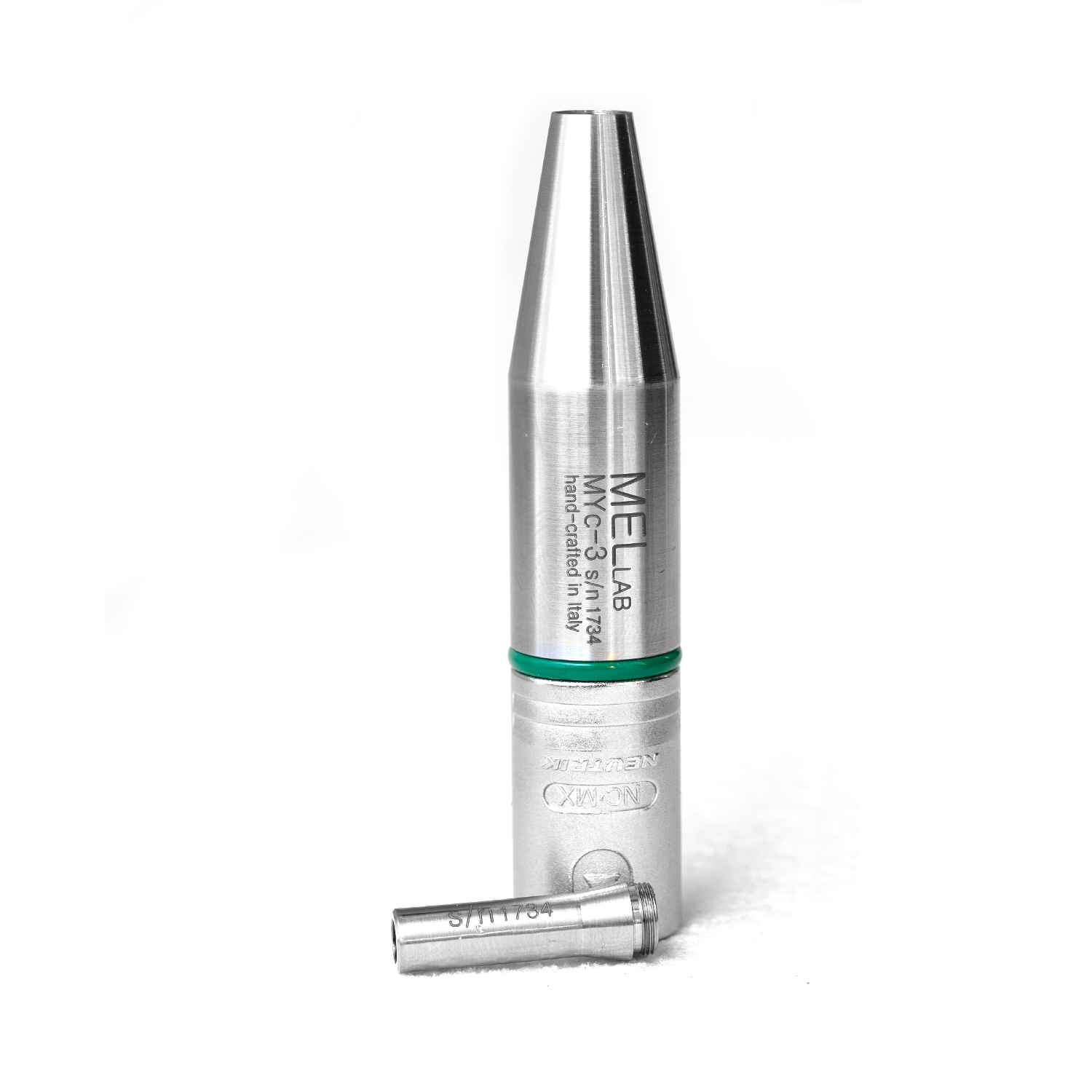

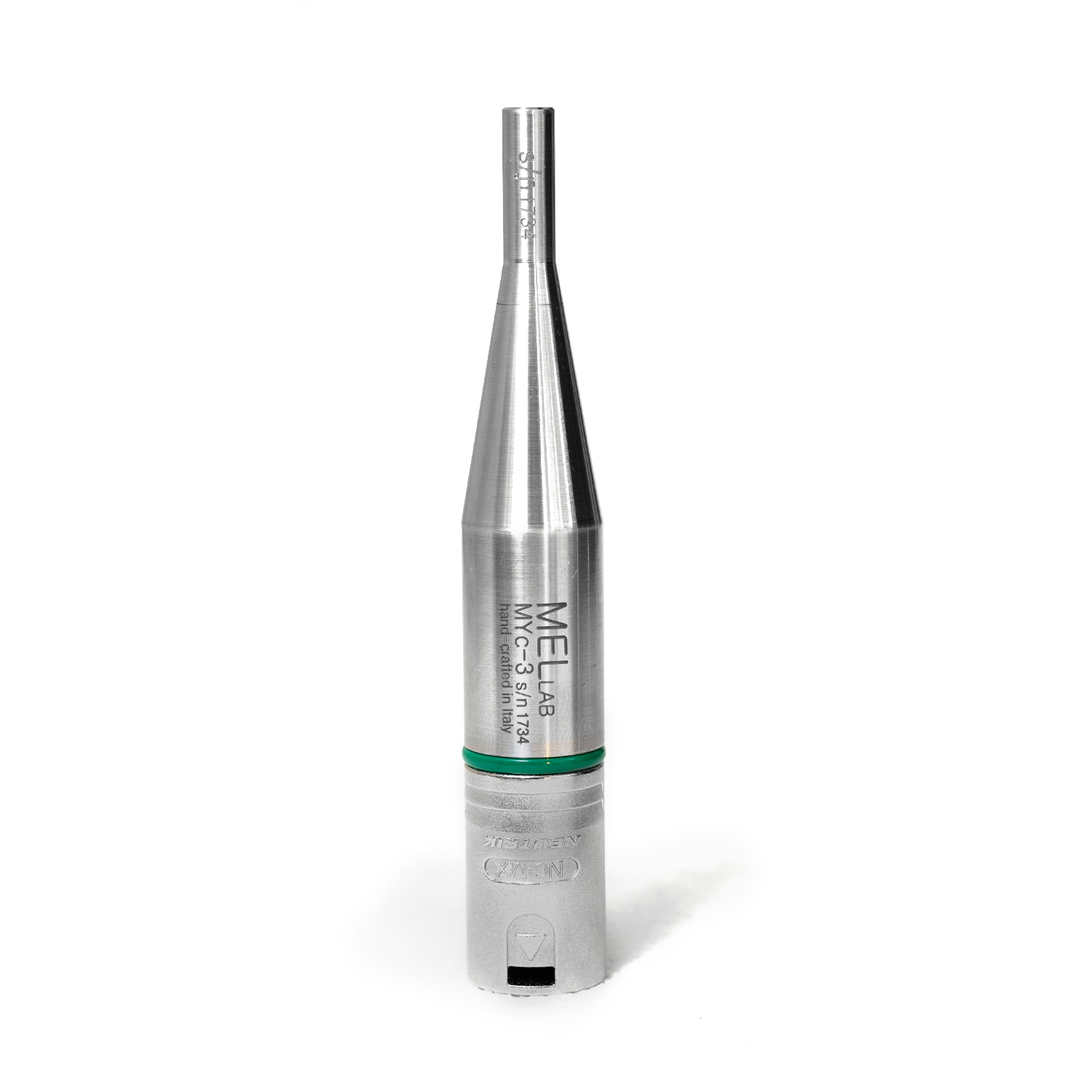

  MYc-3

  Acoustics Measurement Mic.





Application Scenarioes


1.  Acoustic testing of large sound arrays.


2. Sound factory equipment testing


Parameters





Free field frequency response

0°，+/‑ 1dB：10‑10000 Hz

0°，+/‑2dB：10‑22000 Hz


Sensitivity(@ 250Hz；+/‑2 dB) 15 mV/Pa [‑36.5 dB re 1 V/Pa]

Max SPL(THD<3%) 140 dB SPL

Noise

<23 dBASPL equiv. (typical22 dBA)

Powering48V [5 mA]

Temperature coeff.
‍
+0.035 dB/°C

Operating temperature range‑10 °C ⾄ +50 °C (14 ⾄122 °F)

Balancedoutput impedance30Ω

LengthL=116mm

Weight68g
