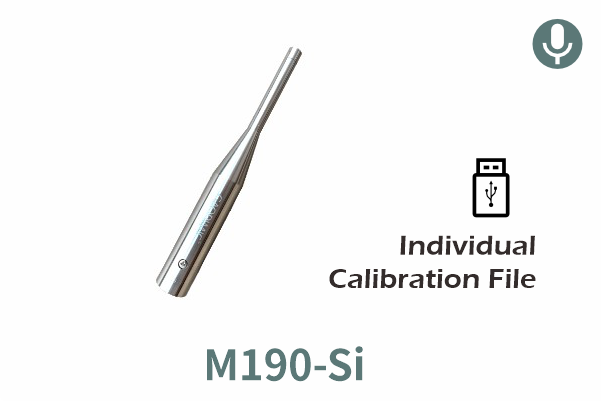

Acoustic Measurement MIC

The appearance is small and exquisite, and the installation is simple. Provide individual Calibration File.

$0.00
$0.00
$115.00
$115.00
Weight:0.000KG
Collor：
Quantity：
Buy now
Add to cart
Product

The appearance is small and exquisite, and the installation is simple. Provide individual Calibration File.

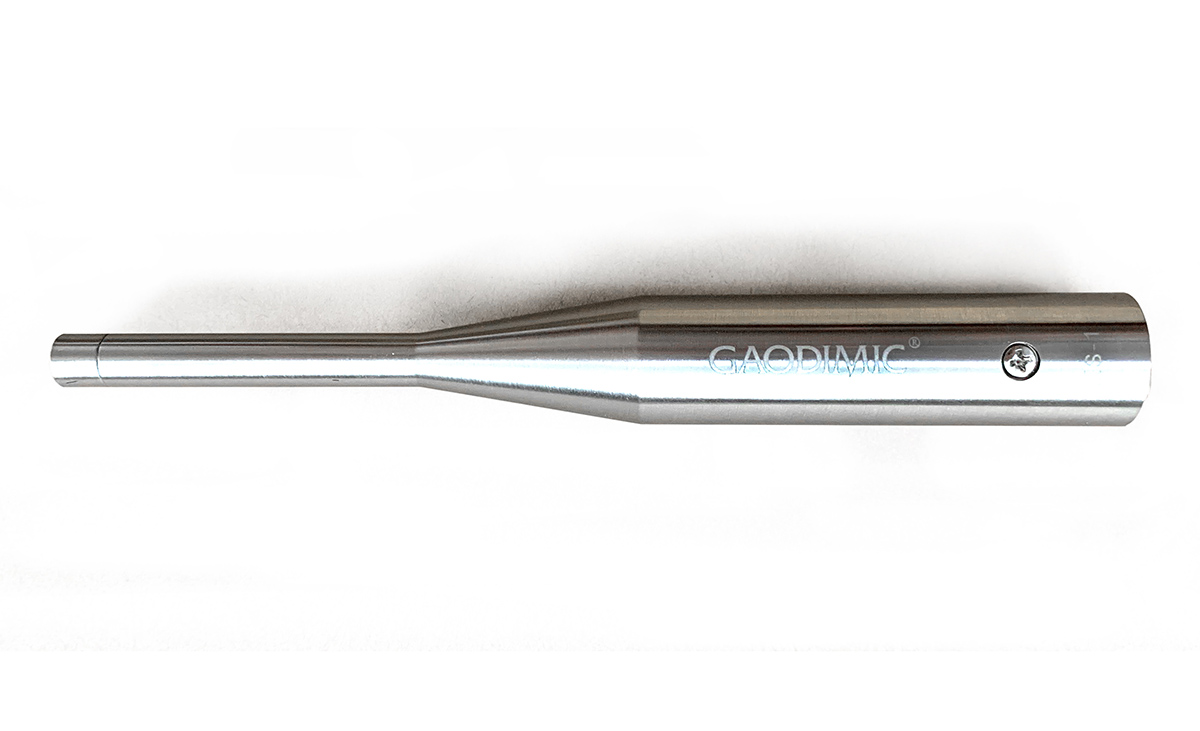

  M190-Si

   Acoustics Measurement Microphone




Characteristics


-The appearance is compact and exquisite, and the installation is simple.

-Provide 9-48V phantom power input.

-Suitable for testing sound fields and PA system calibration.

-Provide individual measurement caliberation file, with USB flash for each MIC.


Functions


  1. It can be used as an ideal spectrum analyzer, allowing for monitoring of frequency response and sound pressure levels of speakers. Compact in appearance, it can be installed inconspicuously.

  2. The linear casing and remote installation of the microphone have a very low impact on the sound field, which can avoid the increase of high-frequency sound pressure.

  3. Receive precise linear frequency response in a diffused sound field.


Parameters


Energy Exchange Method

Back pole type


Working Principle

Pressure type


Directivity

Omnidirectional


Sound Field

Diffused field calibration


Output

Electronic balance


Open Circuit Voltage（@1KHz）

15mV / Pa(-36.5dB) ± 1dB


MAXSPL(@f=1Khz,K=1%,RL=3.3KΩ

121dB/SPL


Nominal Impedance

＞3.3KΩ


SN

＞71dB


A-Weighted quivalent SPL

≈26dB（A）


Freq. Response Range

20Hz-20KHz


Power Supply

9-48V


Work Current

≈2mA


Size

L=155mm / R=19MM


Weight

97g


Characteristic Curve

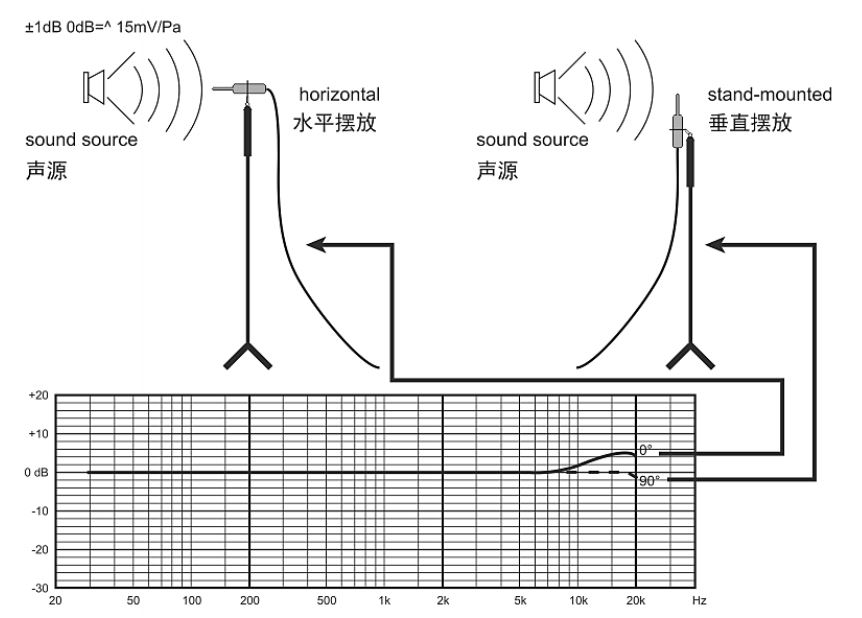

1-Freq. Response Range

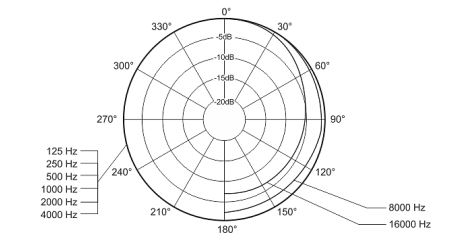

2-Directivity


Documents


Manual (8.19.2024)

02_Manual_EN_GAODIMIC_(M190-S)_RTA Microphone_2024.08.19


Calibration File (10.14.2024)

Caliberation FIles_(M190-S)_20241014_Freq. response free field 0° with Sound Pressure Calibration Adapter (Copper)

Note:

This calibration file is a universal version. If a customized calibration file is required, it needs to be negotiated separately.

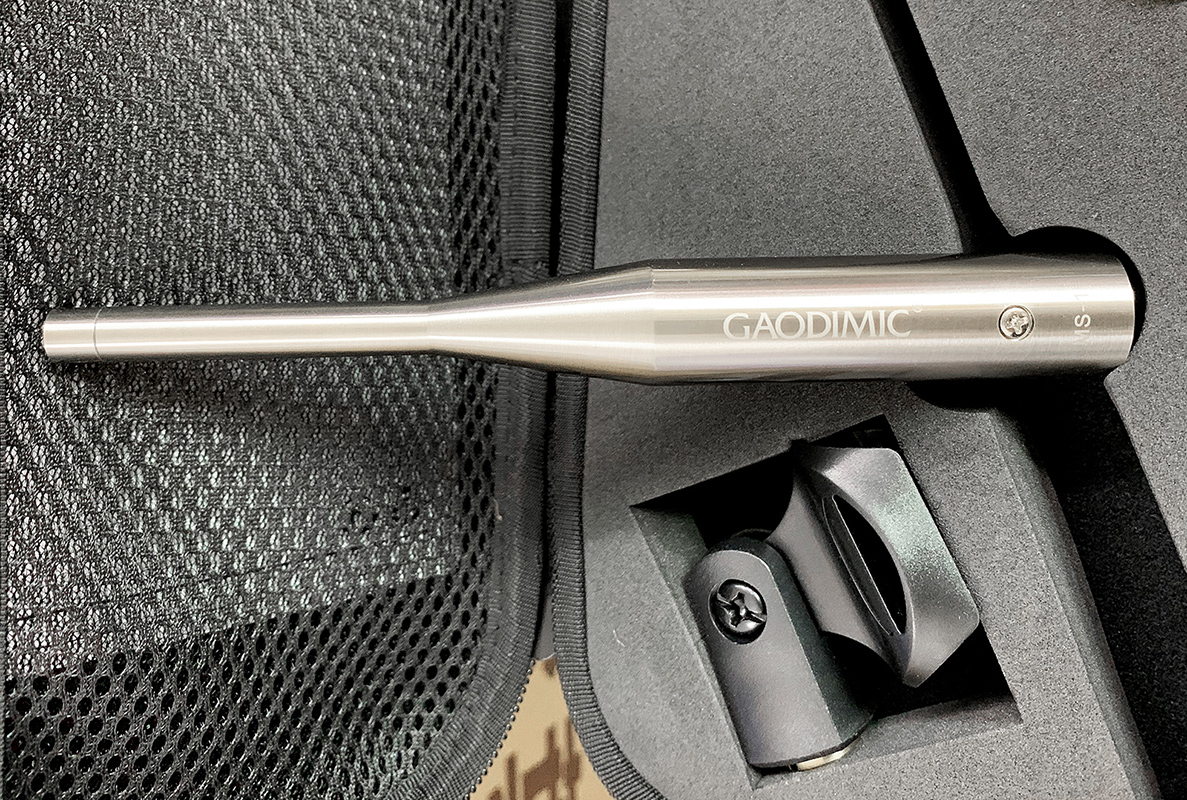

Standard Accessories：

=========================

Microphone stand *1

Storage package *1

Manual *1

Qualification certificate *1
