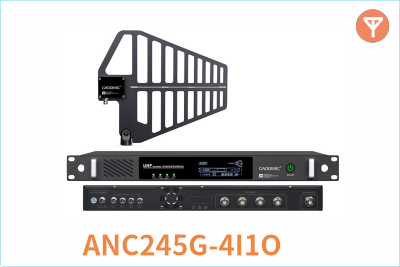

Tansmitter Antenna Combiner Kit - 4 In 2 Out
❤ Add to collection

Tansmitter Antenna Combiner Kit - 4 In 2 Out

One antenna transmits signals from four transmitters. Four input and one output ports allow for use with transmitters featuring BNC antenna connectors.


$150.00
$150.00
$506.00
$506.00
Shipping Weight:0.000KG
Collor：
Quantity:
Buy Now
Add to Cart
Product

One antenna transmits signals from four transmitters. Four input and one output ports allow for use with transmitters featuring BNC antenna connectors.




  ANC241G-4I1O

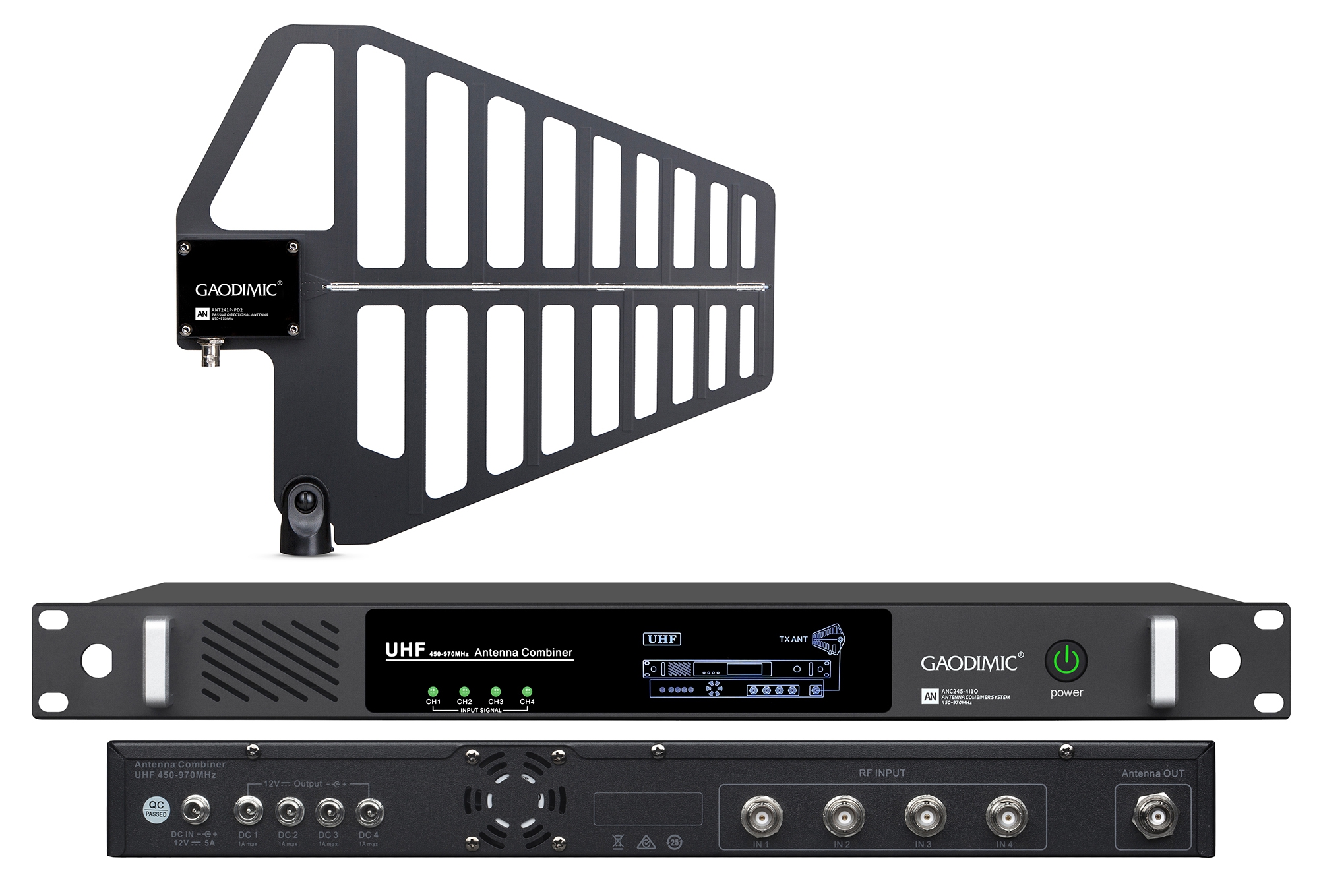

  Transmitter Antenna Combiner & Anttenna Kit - 4 In 1 Out


Features


* One antenna transmits signals from four transmitters.

* Four input and one output ports allow for use with transmitters featuring BNC antenna connectors.

* Four DC 12V output ports provide operating voltage to the transmitters.

* Effectively reduces signal distortion and enhances RF performance.

* Suitable for wireless audio systems, such as in-ear monitoring systems and wireless microphone systems.


Parameters


Frequency range

450～970MHZ

Gain０dB(±２dB)

Input/Output VSWR≤ 1.5 : 1

RF Input Power≤+20dBm (100mW)

Indicator Light (Input Signal Threshold)

+5dBm (5mW)

Interface for I/OBNC（4*IN & 1*Out）

DC Power Interface12 V 2A(Total 150mA x 8)

Power Consumption6W

Power Supply12V / 5A

Combiner Dimensions480x210x45mm

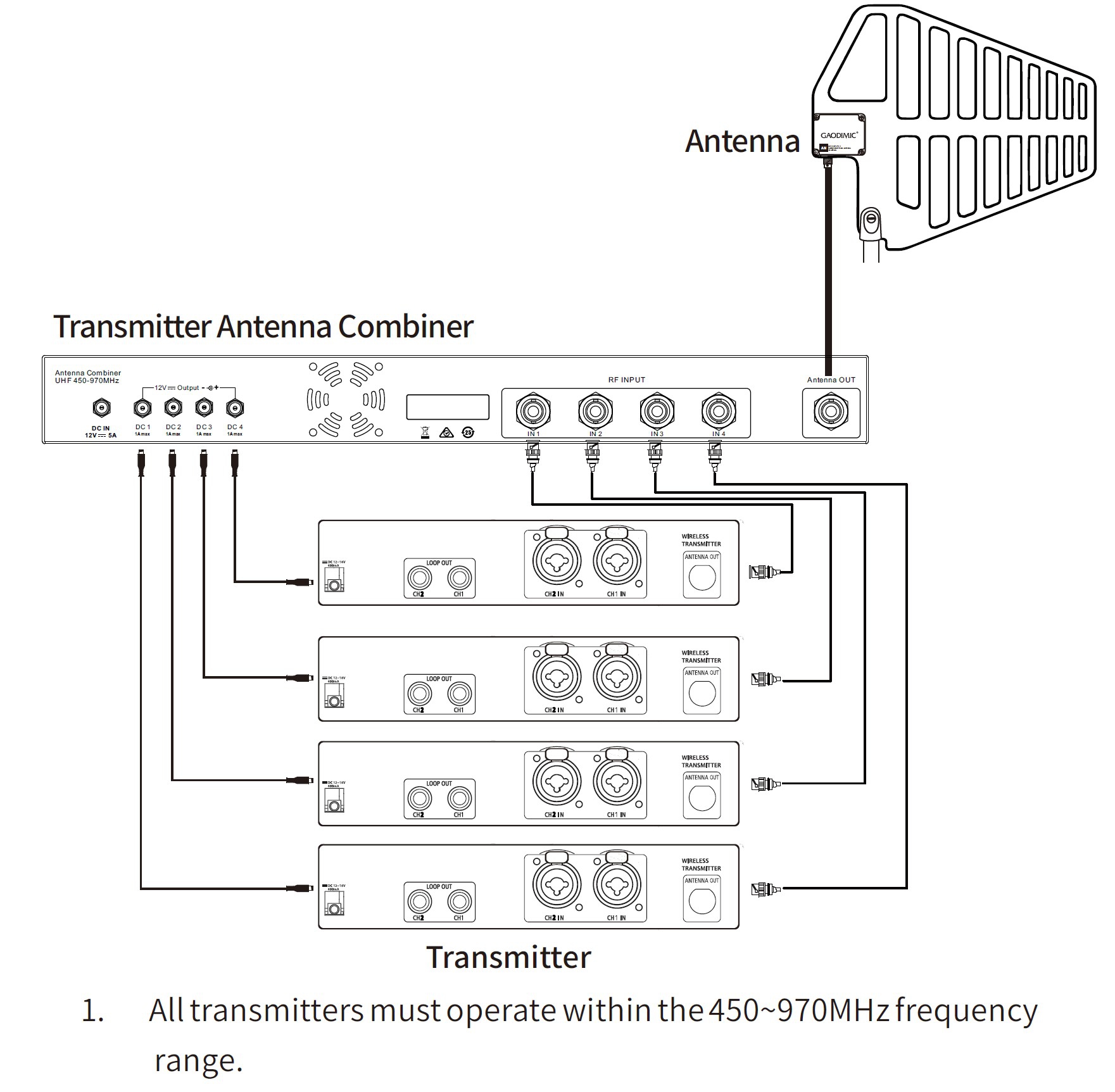

Logic Figure




Documents


2_Manual_[CN EN JP]_GAODIMIC_(ANC245-4I1O)_Transmitter Antenna Combiner-4 In 1 Out_20260226
