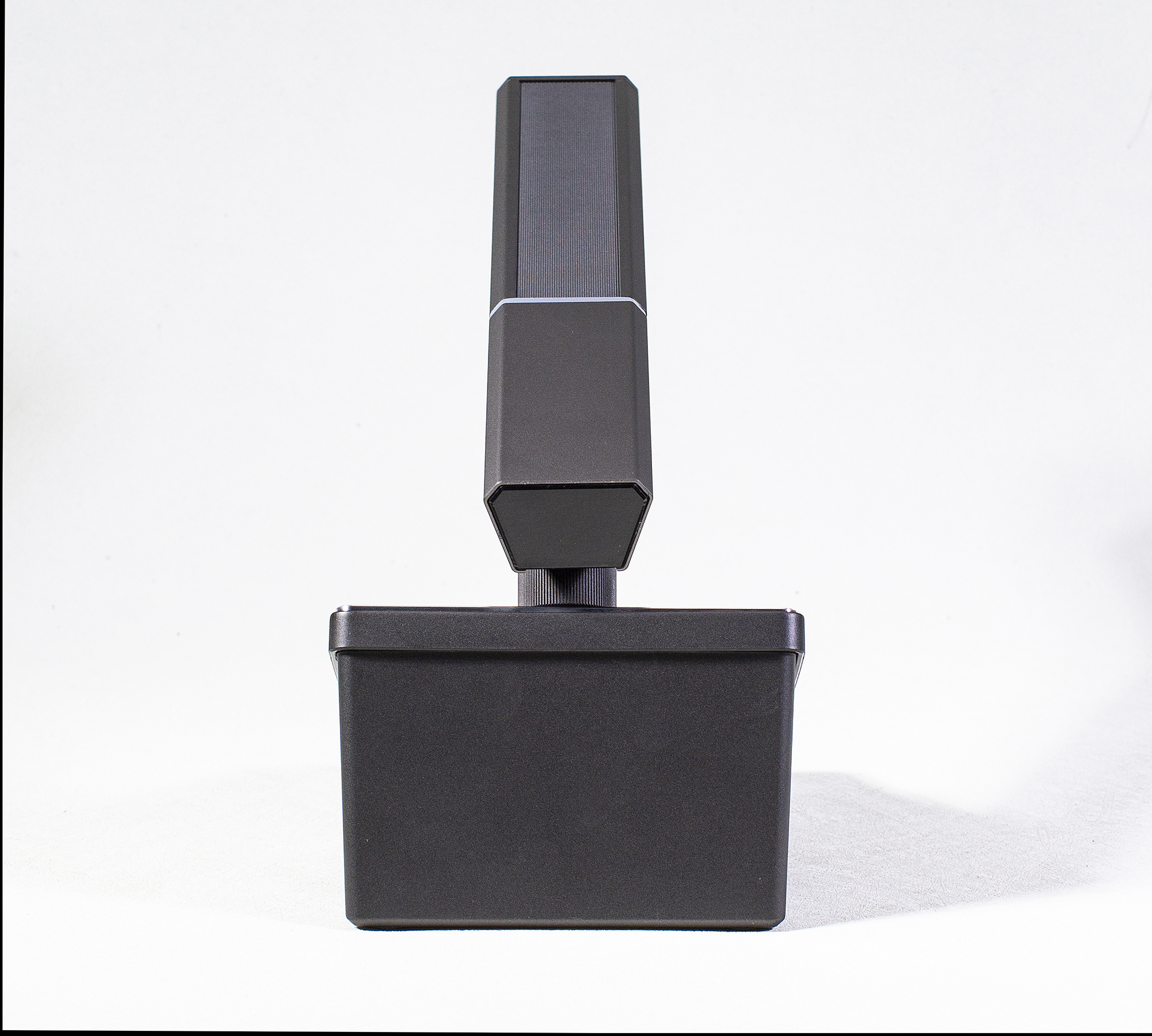

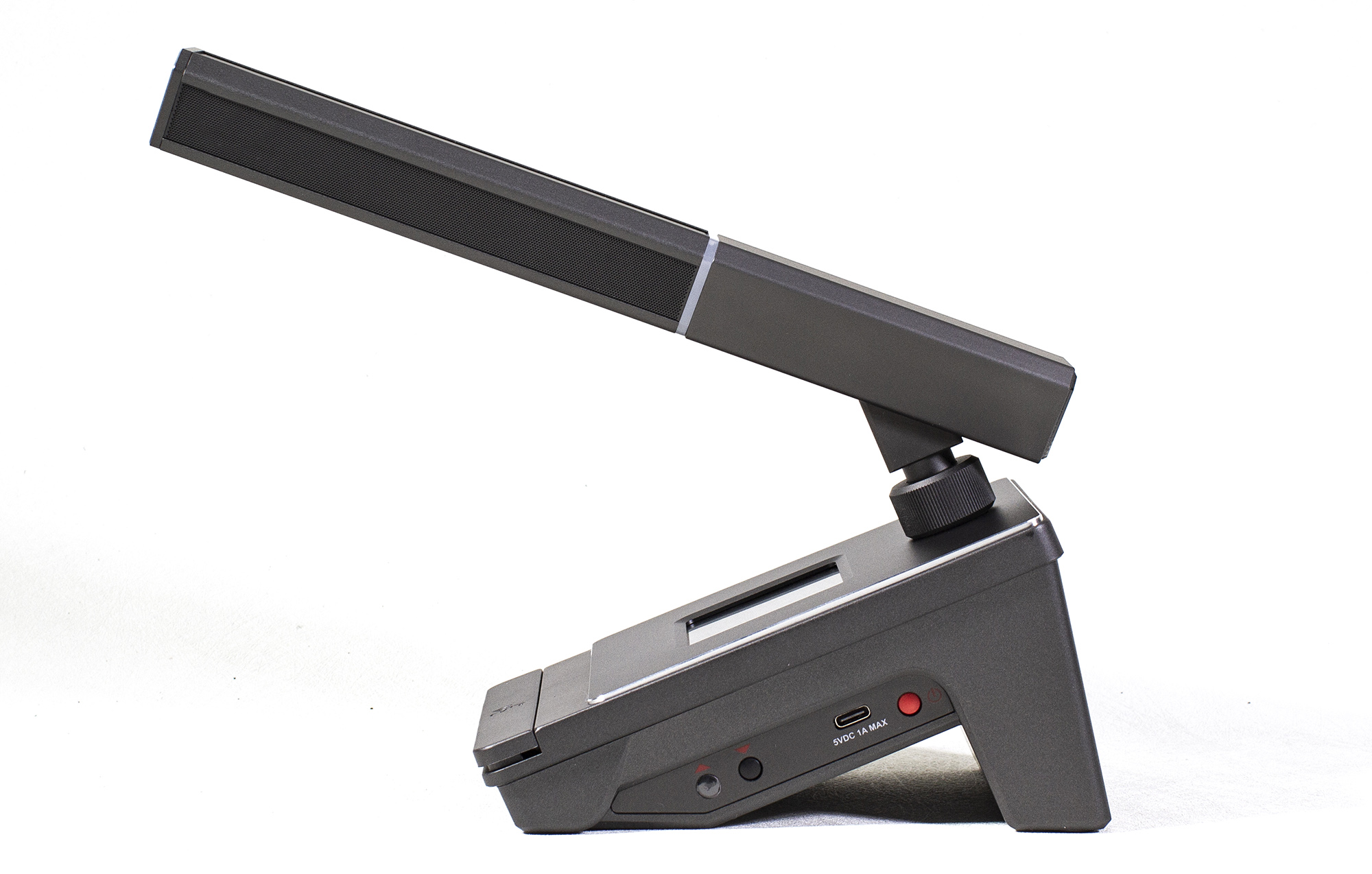

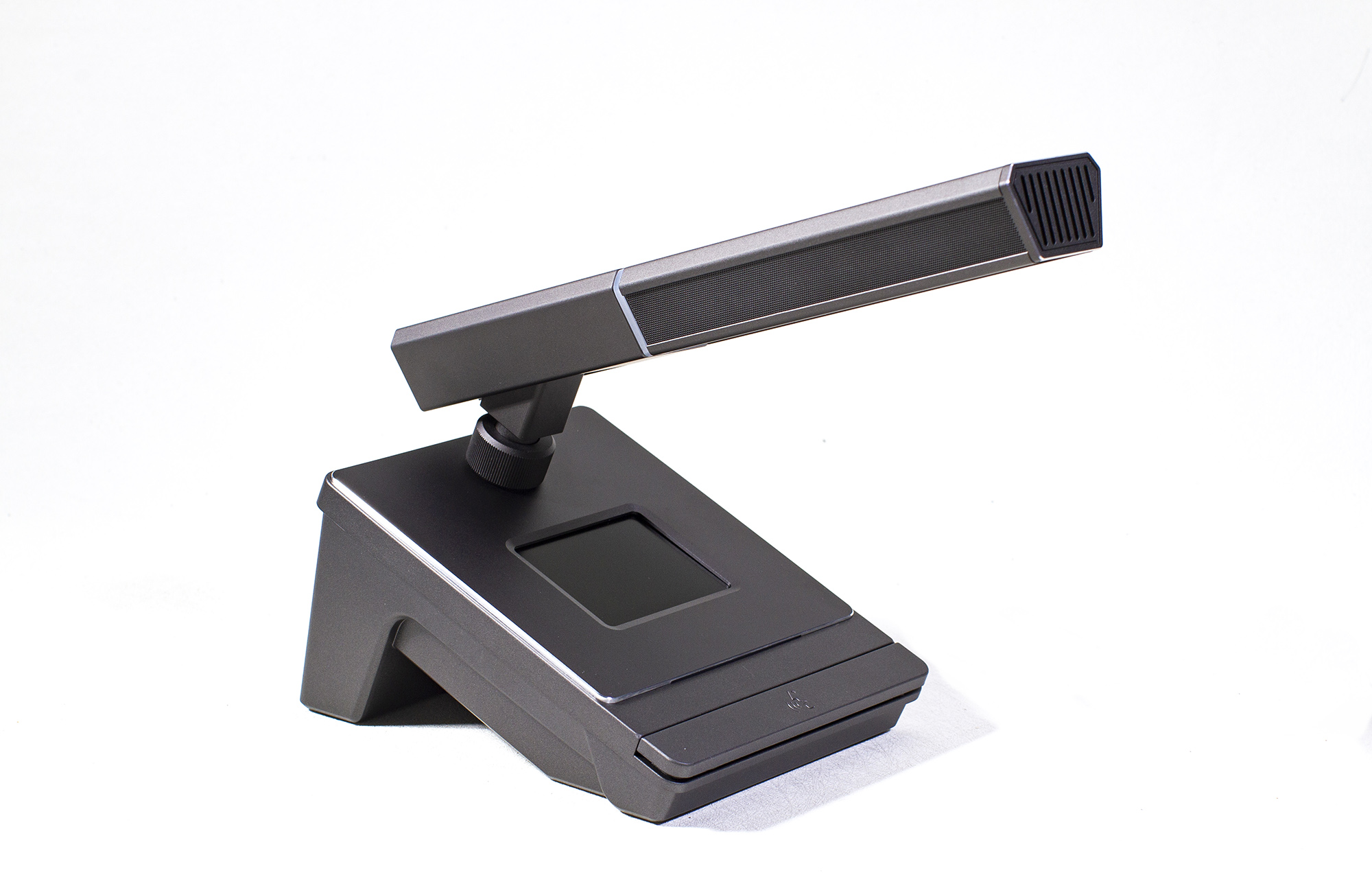

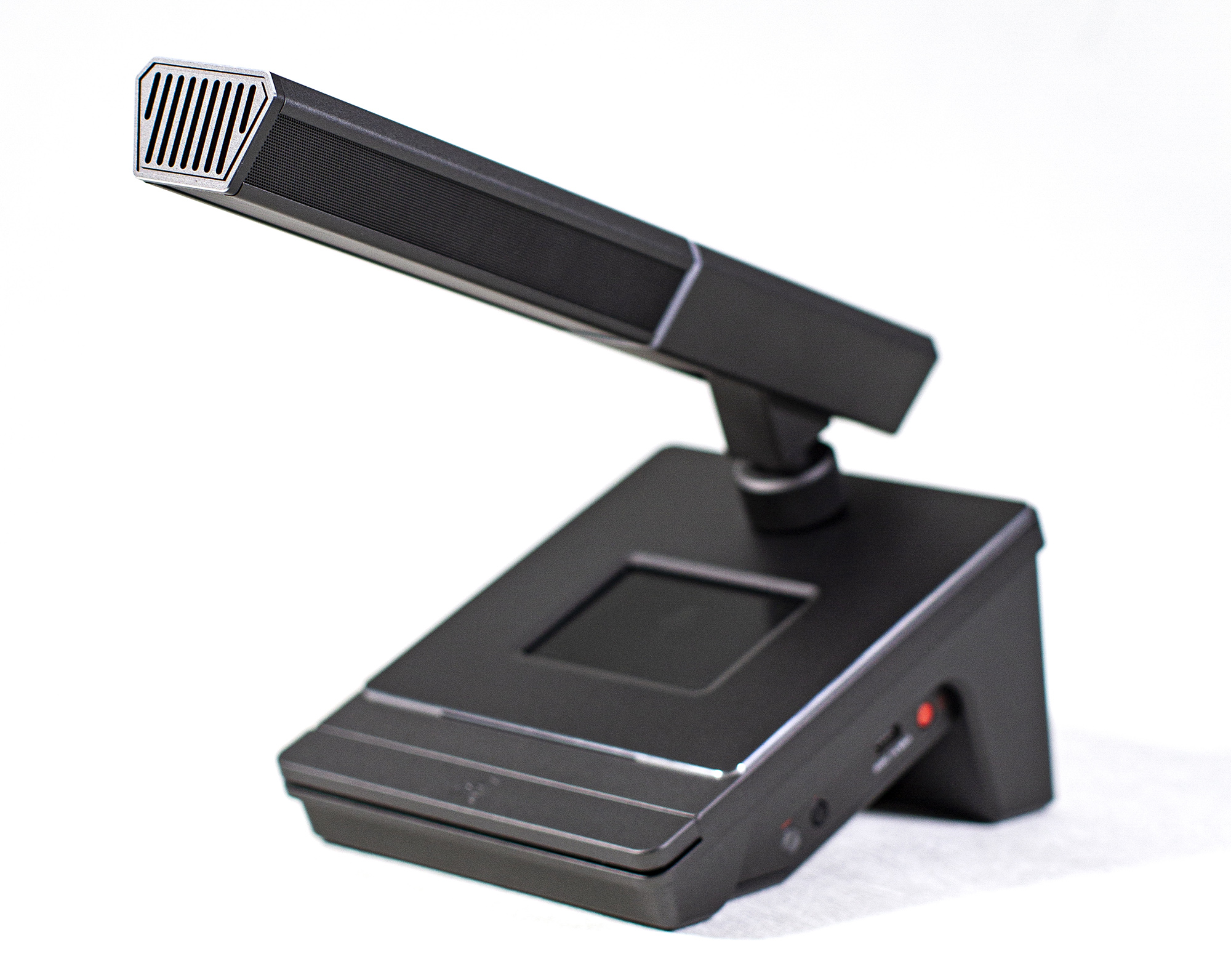

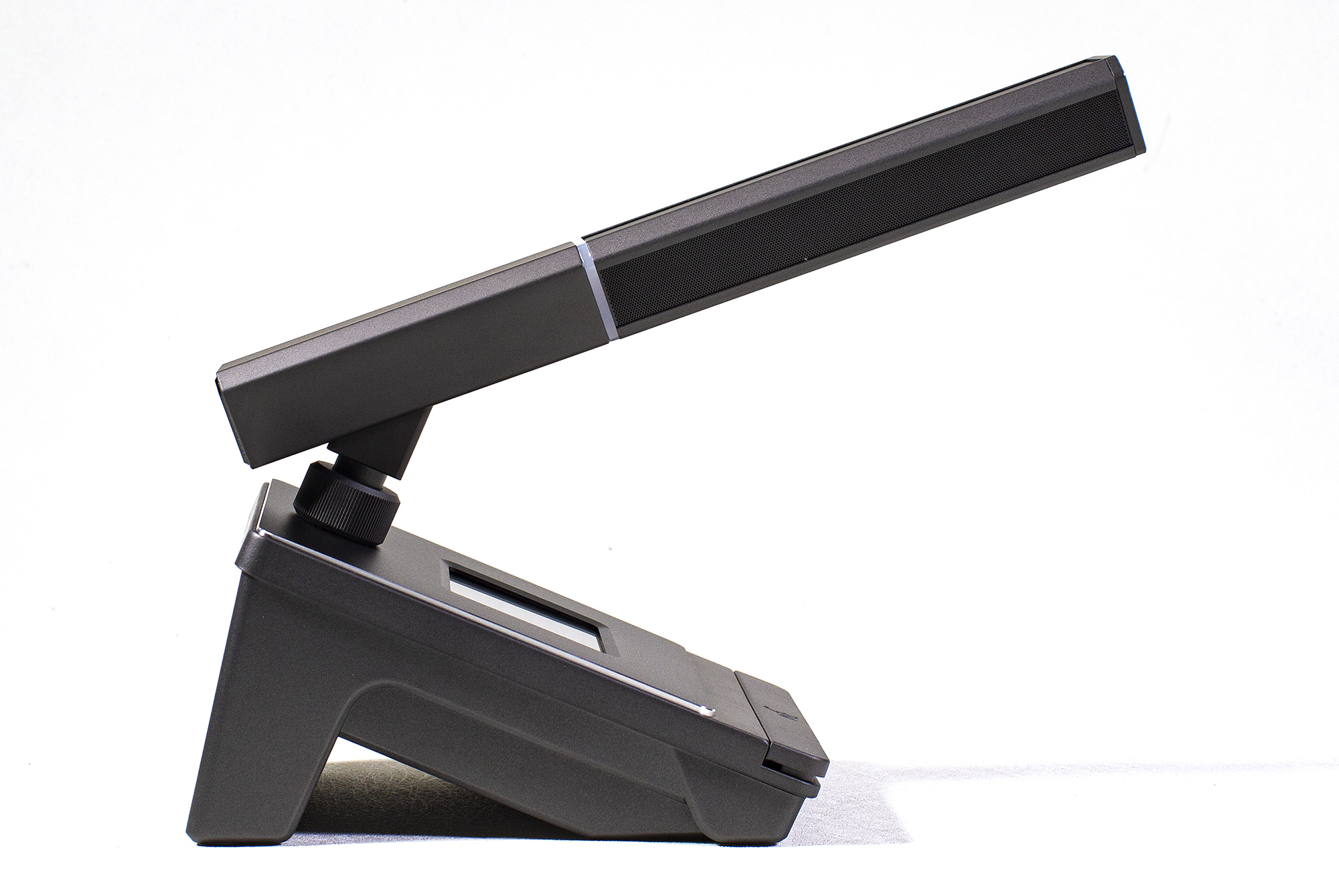

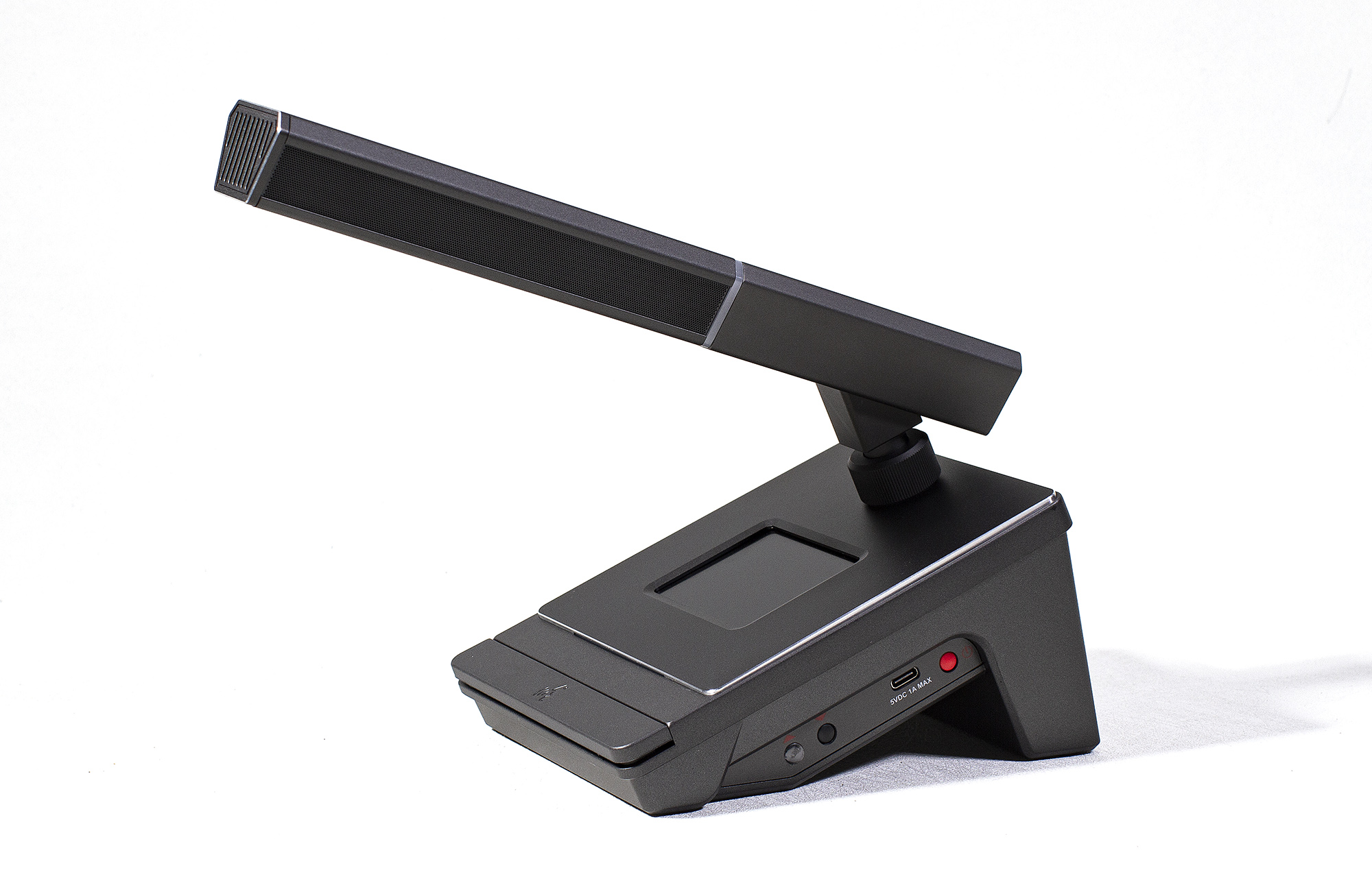

Wireless Straight Pole Seat Terminal (2.8-inch Screen)
❤ Add to collection

Wireless Straight Pole Seat Terminal (2.8-inch Screen)

Based on the new self-developed iMeetingPlat conference system framework and equipped with a 2.8-inch large screen. Supports free switching between 18650 lithium battery and AA battery. Digital wired conference module + digital wireless audio channel + digital wireless management channel, fully digital system. Anti-interference, anti-crosstalk, high fidelity, high signal-to-noise ratio, and excellent wireless transmission distance.


$0.00
$0.00
$217.00
$217.00
Weight:0.000KG
Collor：
Quantity：
Buy now
Add to cart
Accessories
  • USB Charger Modu
    Original ：$38.00
    With a price ：$38    		 Quantity
  • USB Charger Modu
    Original ：$28.00
    With a price ：$28    		 Quantity
  • USB Charger Modu
    Original ：$18.00
    With a price ：$18    		 Quantity
    •
    Original ：$
    0.00

      With the total price ：$
    0.00
Product

Based on the new self-developed iMeetingPlat conference system framework and equipped with a 2.8-inch large screen. Supports free switching between 18650 lithium battery and AA battery. Digital wired conference module + digital wireless audio channel + digital wireless management channel, fully digital system. Anti-interference, anti-crosstalk, high fidelity, high signal-to-noise ratio, and excellent wireless transmission distance.




  WDC236-CLS1e

  Wired and wireless integrated digital conference system

  - Wireless Straight Pole Seat Terminal (2.8-inch Screen)





       Powered by iMeetingPlat


Characteristics


* Wired and wireless integration, the host can schedule and manage wired units and wireless units in a unified manner.

* The wireless subsystem has audio clock synchronous transmission technology with a delay of less than 4ms. The wired subsystem audio uses uncompressed audio transmission to ensure audio quality. The wired subsystem uses custom shielded 6-core cable.

* The host can be connected to the wireless gateway (AP) of the conference system via wired connection to expand the wireless access range.

* MIX channel volume control. The wireless subsystem includes 4 independent channel outputs and 1 MIX output. One MIX audio output for the wired subsystem.

* Supports 4~8 units speaking at the same time, and the two subsystems are configured uniformly.

* Based on iMeetingPlat™ technology platform, bringing a new user experience. Conference status and configuration are clear at a glance.

*Conference Mode: First in first out / Quantity limited.

* Date, time, day of the week settings / volume and brightness settings / language settings / unit number / wireless environment scan / Visca, Peleco-D, Peleco-P camera protocols.

* Supports three roles: Chairman, VIP, and Attendant. Software-defined, easy and convenient member attribute management.

* The unique long horizontal piano key speaking button of the system terminal has a silent design and an excellent experience.


    - Wireless subsystem -


* Real-time frequency scanning, automatic frequency switching technology. The unit uses the optimal frequency every time it speaks.

* Supports wireless gateway access, and the wireless access range is no longer limited by the location of the host.

* The wireless gateway supports up to 256 wireless speaking units.

* Supports capacitive microphone core handheld speaking unit, handheld terminal automatic sleep, 3D motion wake-up.

* The wireless terminal adopts "hybrid" patented power supply technology, and can be freely switched between lithium batteries and AA batteries.


    - Wireless Terminal -


* Adopts 2.8-inch TFT large screen.

* Adopts exclusive hybrid patented technology and supports free switching between 18650 lithium battery and AA battery.


Parameters

1. Wireless subsystem parameters


Communication mode

Voice channel: digital communication, control channel: digital communication


ModulationVoice channel: PI/4 DQPSK ; Management channel: GFSK

Carrier frequency band668MHz~698MHz

Carrier frequency band rang30MHz

Integrated S/N>96dB

Integrated T.H.D<0.2%（@1KHz）

Comprehensive30Hz~18KHz

Frequency response<2dB（20Hz~20KHz）

Transmission delay<4ms

Transmission distanceThe effective transmission distance is based on different terminals and sound quality, reaching a distance of 50-80m

Distortion<0.5%

Antenna mechanismAntenna diversity

Antenna600MHz Antenna*2 + 2.4GHz Antenna*1

2. Microphone


Type

Capacitor microphone core


Sensitivity-30±2dB ( f=1KHZ,S.P.L=1Pa 0dB=1V/Pa)

Freq. response range70Hz ~16kHz

Operating voltage range1.0V-5.0V

MAX S.P.L105dB (F=1KHz，THD＜5%)

SN70dB (S:f=1KHz,S.P.L=1Pa; N:A-Weighted curve)

3. Others


ScreenTFT full color touch display

Screen size2.8 inch

Resolution480x320

Power supply18650 2000mha Li battery / AA battery*3 [Hybird Battery Tech]

Recharge ModeUSB-C

Weight360g

Dimensions (MM)Base: 120x180x110; Microphone pole: 290x50x40

Materialaluminum + cast iron + plastic

Temperature rangeworking: -0.45℃; storage and transportation: -20.55℃ (low temperature may affect the performance of lithium batteries)


TOPO


Documents


1_manual_EN_iweex (XDC236-CLS&CLG)_Wired & Wireless Integrated Digital Conference System_Wireless Terminal_2024.07.16


23_Connection TOPO_EN_iweex(XDC236)_Wired and wireless converged digital conference system_2024.6.23



System Introduction

  <<Wired,Wireless Integrated Conference System（XDC236）>>

  <<iMeetingPlat™ Integrated conference system architecture platform>>


----------------------------------


Standard Accessories：

=========================

USB-C recharge cable *1

Manual *1

Qualification certificate *1
