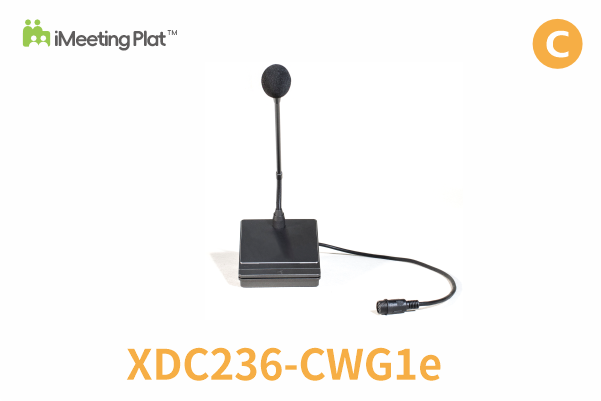

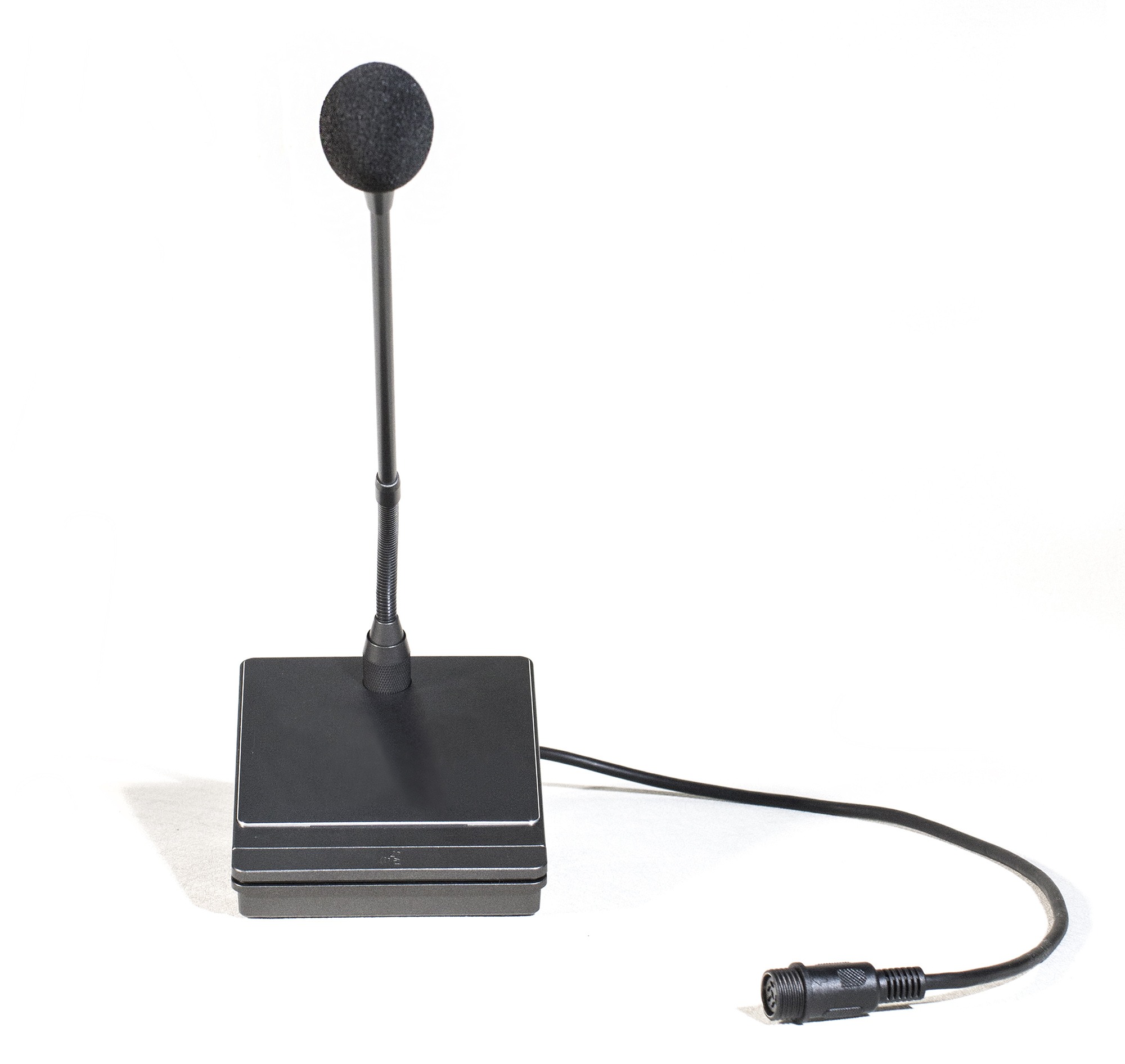

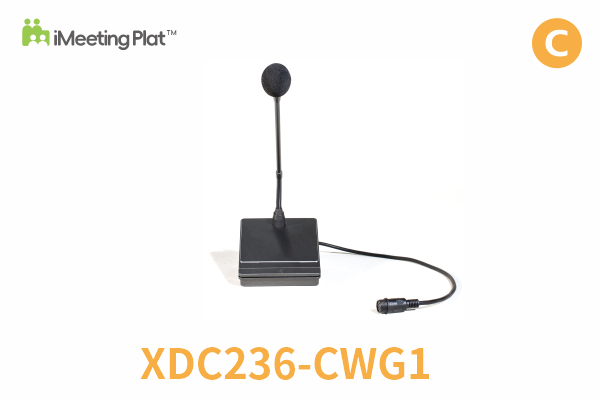

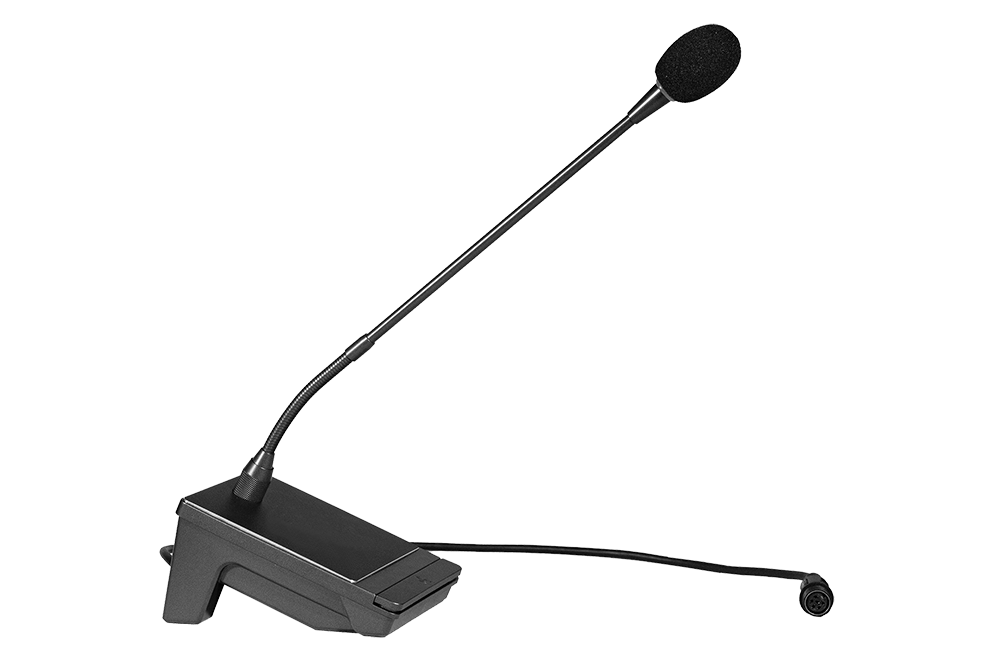

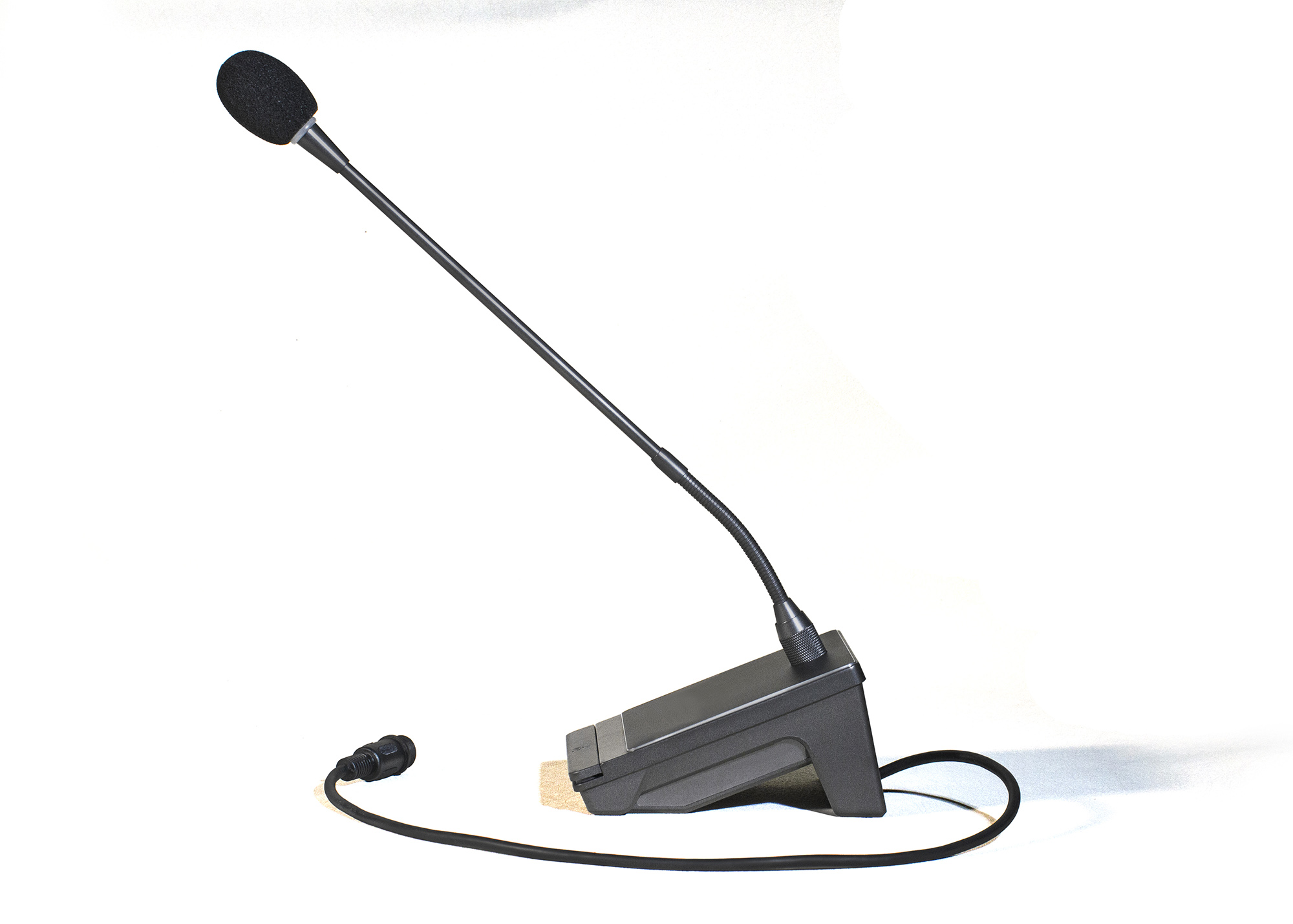

Wired Gooseneck Seat Ternimal (No Screen)
❤ Add to collection

Wired Gooseneck Seat Ternimal (No Screen)

Based on the new self-developed iMeetingPlat conference system framework. Full metal appearance, high quality. Digital wired conference module + digital wireless audio channel + digital wireless management channel, fully digital system. Anti-interference, anti-crosstalk, high fidelity, high signal-to-noise ratio, and excellent wireless transmission distance.


$0.00
$0.00
$137.00
$137.00
Weight:0.000KG
Collor：
Quantity：
Buy now
Add to cart
Accessories
  • 6-Core Conferenc
    Original ：$36.00
    With a price ：$36    		 Quantity
  • 6-Core Conferenc
    Original ：$8.00
    With a price ：$8    		 Quantity
    •
    Original ：$
    0.00

      With the total price ：$
    0.00
Product

Based on the new self-developed iMeetingPlat conference system framework. Full metal appearance, high quality. Digital wired conference module + digital wireless audio channel + digital wireless management channel, fully digital system. Anti-interference, anti-crosstalk, high fidelity, high signal-to-noise ratio, and excellent wireless transmission distance.




  WDC236-CWG1e

  Wired and wireless integrated digital conference system

  - Wired Gooseneck Seat Ternimal ( Without Screen)





       Powered by iMeetingPlat


Characteristics


* Wired and wireless integration, the host can schedule and manage wired units and wireless units in a unified manner.

* The wireless subsystem has audio clock synchronous transmission technology with a delay of less than 4ms. The wired subsystem audio uses uncompressed audio transmission to ensure audio quality. The wired subsystem uses custom shielded 6-core cable.

* The host can be connected to the wireless gateway (AP) of the conference system via wired connection to expand the wireless access range.

* MIX channel volume control. The wireless subsystem includes 4 independent channel outputs and 1 MIX output. One MIX audio output for the wired subsystem. *

* Supports 4~8 units speaking at the same time, and the two subsystems are configured uniformly.

* Based on iMeetingPlat™ technology platform, bringing a new user experience. Conference status and configuration are clear at a glance.

*Conference Mode: First in first out / Quantity limited.

* Date, time, day of the week settings / volume and brightness settings / language settings / unit number / wireless environment scan / Visca, Peleco-D, Peleco-P camera protocols.

* Supports three roles: Chairman, VIP, and Attendant. Software-defined, easy and convenient member attribute management.

* The unique long horizontal piano key speaking button of the system terminal has a silent design and an excellent experience.


   - Wired subsystem -


* Using high-speed 6-core digital cable to transmit data and power supply, the transmission distance can reach up to 150 meters.

* Sampling frequency 48KHz, frequency response 20Hz-20kHz, achieving CD-level sound quality.

* The wired subsystem has 4 inputs, each channel can connect up to 32 units, and supports a maximum of 128 units.

*Support ring hand-in-hand function. Equipped with hot-swappable protection and short-circuit protection.

* The system terminal adopts metal structure shielding design and circuit anti-interference design, which is not susceptible to signal interference.


- Wired terminal -

* High-end all-metal panel, metal frame.

* Available in both non-screen and large-screen versions, the large-screen wired conference terminal uses a 3.5-inch TFT full-color touch screen, which is easy to operate and can change the background according to the conference theme and scene.


Parameters

1. Wired Sub-System


Communication mode

Voice channel: analog communication, Control channel: digital communication


Comprehensive S/N >96dB

Dynamic range96dB

Comprehensive T.H.D＜0.1%（@1KHz）

Frequency response（Hz）50~16KHz

Freq. response attenuation<1dB（20Hz~20KHz）

Transmission delay (ms)<1ms

Automatic gain controlMicrophone 2 is turned on, increase by 2dB; 3-5 increase by 1dB

Master gain control15 × 1dB and off (static)

Transmission mediumProfessional high-speed 6-core digital cable

Harmonic distortion<0.5%

Unit connector6 core.DIN*5

Effective transmission distance150M

Output impedance470Ω

2. Microphone


Type

Capacitor microphone core


Sensitivity-30±2dB ( f=1KHZ,S.P.L=1Pa 0dB=1V/Pa)

Freq. response range70Hz ~16kHz

Operating voltage range1.0V-5.0V

MAX S.P.L105dB (F=1KHz，THD＜5%)

SN70dB (S:f=1KHz,S.P.L=1Pa; N:A-Weighted curve)

3. Others


Screen-

Screen size-

Resolution-

Power supply6-core digital cable

Weight1500g

Dimensions (MM)Base: 120x180x110; Microphone pole: 290x50x40

Materialaluminum + cast iron + plastic

Temperature rangeworking: -0.45℃; storage and transportation: -20.55℃ (low temperature may affect the performance of lithium batteries)


TOPO


Documents


1_manual_EN_iweex (XDC236-CWS&CWG)_Wired & Wireless Integrated Digital Conference System_Wired Terminal_2024.07.16


23_Connection TOPO_EN_iweex(XDC236)_Wired and wireless converged digital conference system_2024.6.23



System Introduction

  <<Wired,Wireless Integrated Conference System（XDC236）>>

  <<iMeetingPlat™ Integrated conference system architecture platform>>


----------------------------------


Standard Accessories：

=========================

Sponge windproof *1

Manual *1

Qualification certificate *1
