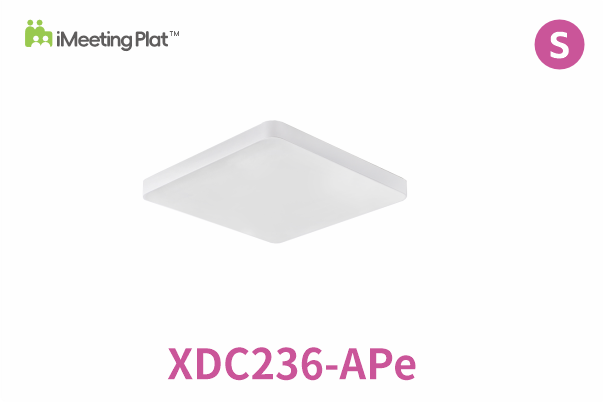

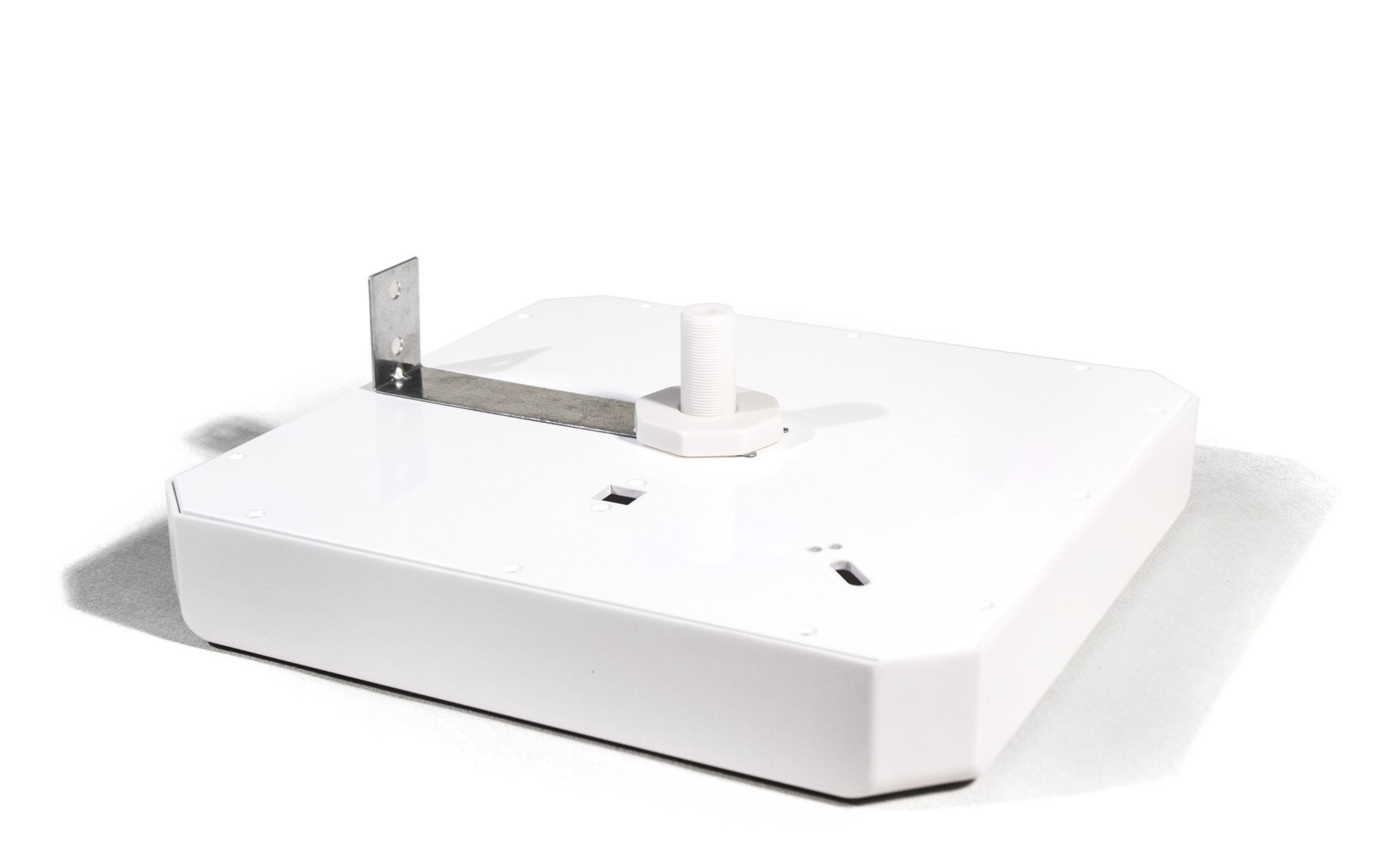

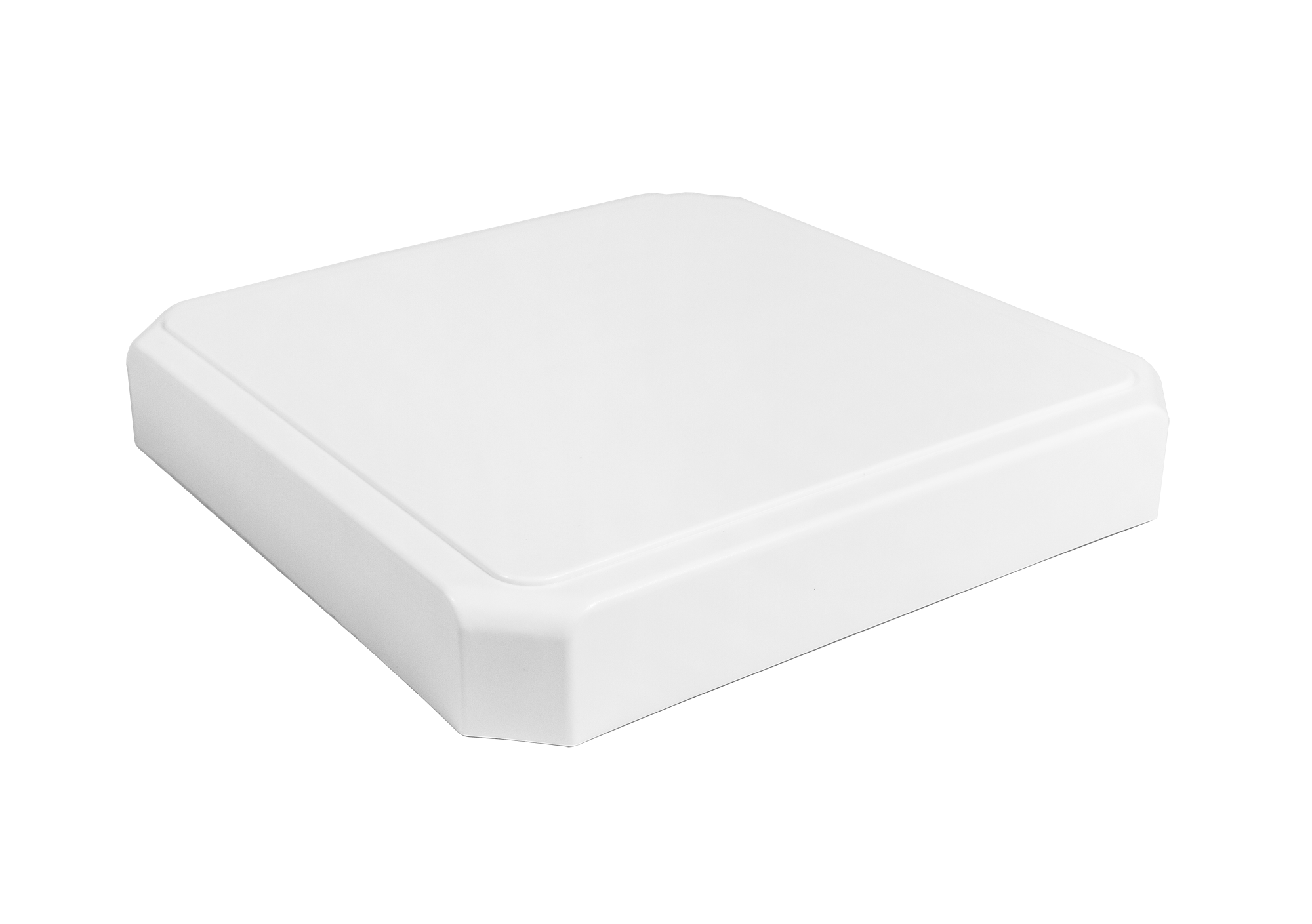

  XDC236-APe

  Wired and Wireless Integrated Digital Conference System

  - AP Wireless Gateway





       Powered by iMeetingPlat


Characteristics


*Wired and wireless integration, where the host uniformly speaks, schedules, and manages wired and wireless units.

*The wireless subsystem has audio clock synchronization transmission technology, with a delay of less than 4ms. The wired subsystem uses uncompressed audio transmission to ensure audio quality. The wired subsystem adopts customized shielded 6-core cables.

*The host can connect wirelessly to the conference system's wireless gateway (AP), expanding the wireless access range.

*MIX channel volume control. The wireless subsystem includes 4 independent channel outputs and 1 MIX output. One MIX audio output from the wired subsystem*

*Support 4-8 units to speak simultaneously, with two subsystems configured uniformly.

*Based on iMeetingPlat ™ A technological platform that brings a brand new user experience. The meeting status and configuration are clear at a glance.

*Meeting mode: First in, First out/quantity limit.

*Date, time, week settings/Volume and brightness settings/Language settings/Unit number/Wireless environment scanning/Visca, Peleco D, Peleco P camera protocols.

*Supports three roles: Chairman, VIP, and Attendee, with software definition and easy and convenient management of member attributes.

*The long horizontal piano key speaker button unique to the system terminal, with a silent design, provides an excellent experience.


-Wired subsystem-

*Using high-speed 6-core digital cables to transmit data and power, the transmission distance can reach up to 150 meters.

*The sampling frequency is 48KHz, with a frequency response of 20Hz-20kHz, achieving a CD level sound quality effect.

*The wired subsystem has 4 inputs, with a maximum of 32 connections per channel and a maximum support of 128 units.

*Supports circular handle function. Equipped with hot swappable protection and short circuit protection functions.

*The system terminal adopts a metal structure shielding design and circuit anti-interference design, which is not easily affected by signal interference.


-Wireless subsystem-

*Real time frequency scanning and automatic frequency switching technology. The unit uses the optimal frequency for each speech.

*Support wireless gateway access, wireless access range is no longer limited by host location.

*The wireless gateway supports up to 256 wireless speaking units.

*Supports capacitive microphone handheld speaker unit, handheld terminal automatic sleep, 3D motion wake-up.

*The wireless terminal adopts "hybrid" patented power supply technology, and lithium batteries and No. 5 batteries can be freely switched for use.


Parameters

1. Wired subsystem parameters


Communication mode

Voice channel: analog communication, control channel: digital communication


IntegratedS/N >96dB

Dynamic range96dB

Comprehensive T.H.D＜0.1%（@1KHz）

Frequency response（Hz）50~16KHz

Frequency response attenuation<1dB（20Hz~20KHz）

Transmission delay (ms)<1ms

Dynamic gain control2 microphones on, increasing by 2dB; 3-5 increases by 1dB

Main gain control15 × 1dB and off (static)

Transmission mediaHigh speed 6-core digital cable

Harmonic distortion<0.5%

Unit connector6 cores DIN * 5

Communication port-

Input channel1 channel XLR

2. Wireless subsystem parameters


Communication mode

Voice channel: digital communication, control channel: digital communication


ModulationVoice channel: PI/4 DQPSK ; Management channel: GFSK

Carrier frequency band668MHz~698MHz

Carrier frequency band rang30MHz

Integrated S/N>96dB

Integrated T.H.D<0.2%（@1KHz）

Comprehensive30Hz~18KHz

Frequency response<2dB（20Hz~20KHz）

Transmission delay<4ms

Transmission distanceThe effective transmission distance is based on different terminals and sound quality, reaching a distance of 50-80m

Distortion<0.5%

Antenna mechanismAntenna diversity

Antenna600MHz Antenna*5 + 2.4GHz Antenna*1

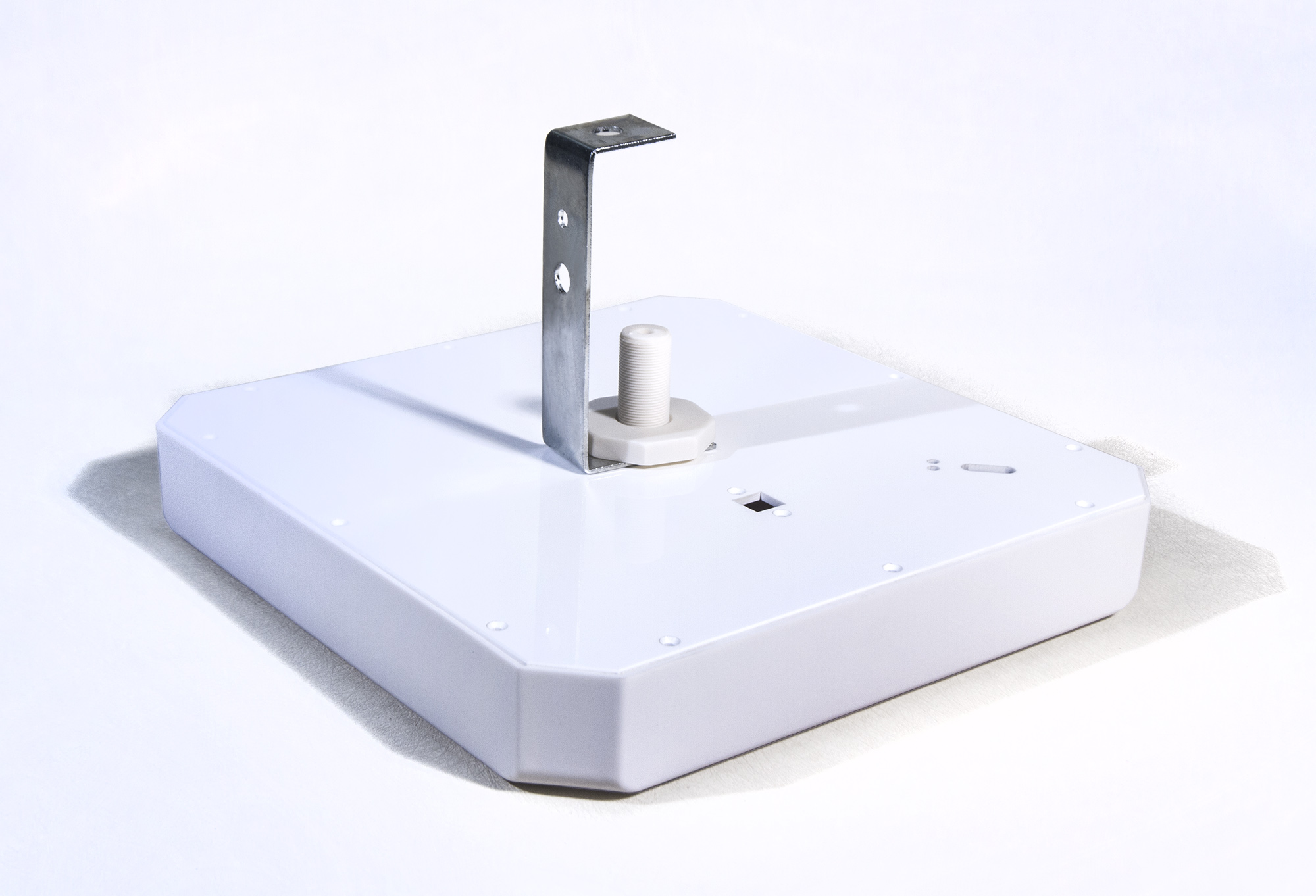

3. Other parameters


Screen-

Screen size-

Resolution-

Power supplyHost power supply

Power consumption8W

Power supply interface -

Weight500g

Size400mm x 400mm x 69 mm

MaterialAcrylic shell

Temperature range operationWorking: -0.45 ℃; Storage and transportation: -20.55 ℃ (low temperature may affect the performance of lithium batteries)


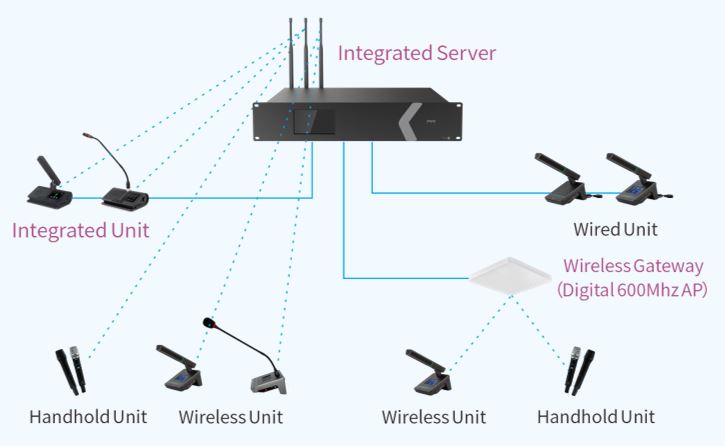

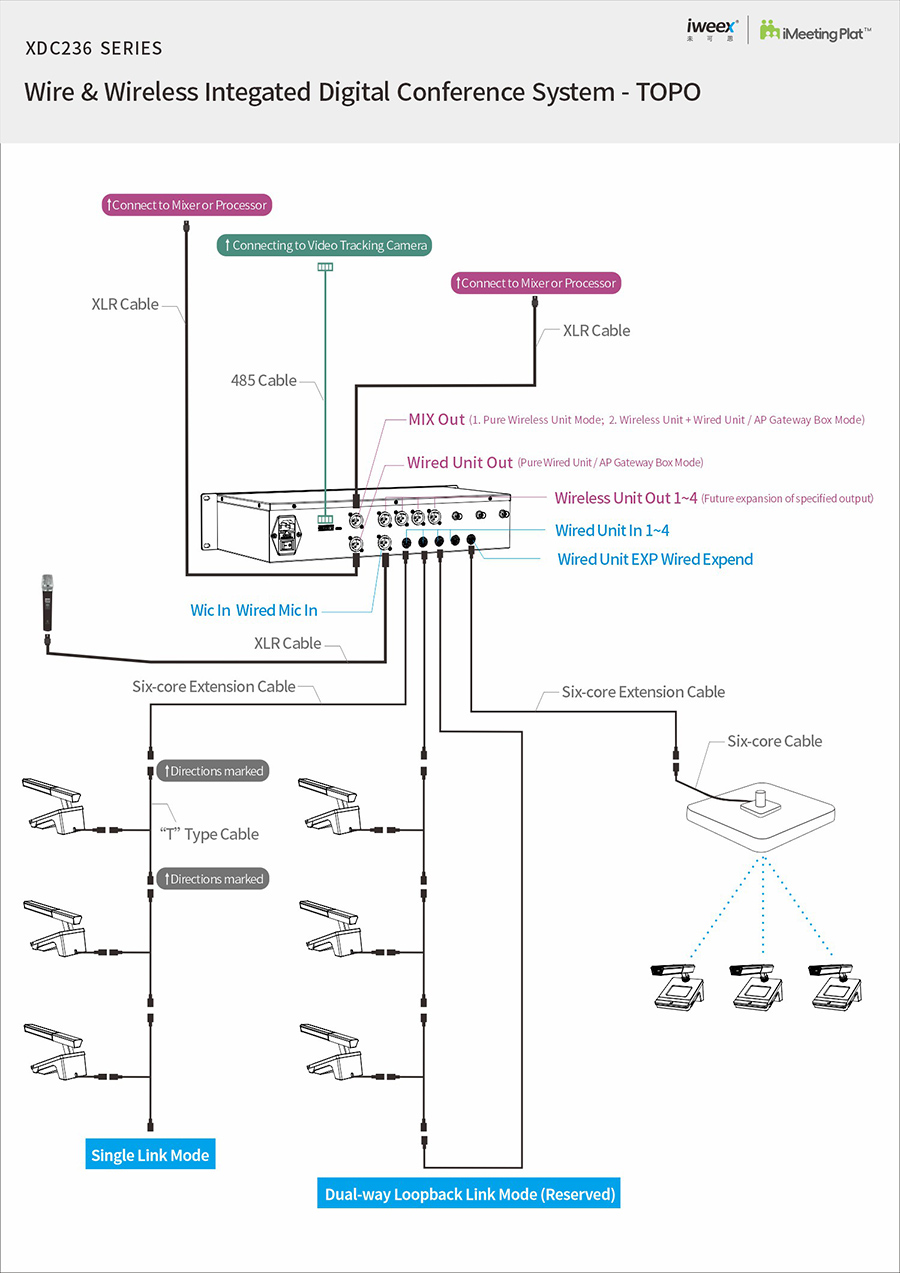

TOPO Logic


Documents


1_Manual_EN_iweex (XDC236-AP)_Wired & wireless integrade Digital System_Wierd Gateway_2024.07.14


21_iweex(XDC236)_Wired,Wireless Integrated Conference System_2024.4.24


23_Connection TOPO_EN_iweex(XDC236)_Wired and wireless converged digital conference system_2024.6.23



System Introduction

  <<Wired,Wireless Integrated Conference System（XDC236）>>

  <<iMeetingPlat™ Integrated conference system architecture platform>>


----------------------------------


Standard Accessories：

=========================

Manual *1

Qualification certificate *1
